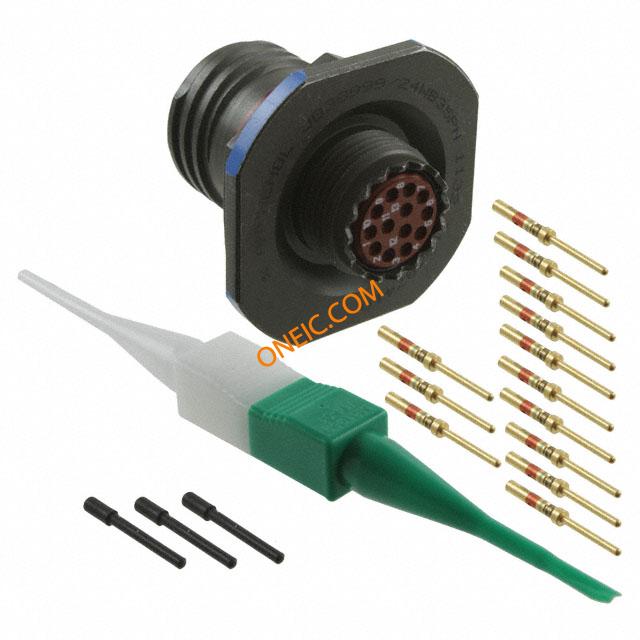

D38999/24WB35PN
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS non-compliant | EU RoHS | Not Compliant |
| MIL Type | MIL-DTL-38999 III | Tariff No | 85369010 |
| Approval Agency | :MIL-DTL-38999 Series III | ||
Electrical
| Insertion Loss | Normal | Current Rating (Max) | 5A |
| Voltage - Supply (Min) | 1300 | ||
Mechanical
| Depth | 31.75 | Height | 31.75 |
| Weight | 0.001 | Diameter | 35.2 |
| Packaging | Bulk | Shielding | Yes |
| Cable Exit | No | Shell Size | 11 |
| Wire Gauge | 28,26,24,22 | Orientation | N (Normal) |
| Shell Style | jam nut receptacle | Termination | Crimp |
| Contact Size | 13#22D | Contact Type | 13Signal |
| Housing Color | Olive Drab | Mounting Type | Jam Nut |
| Shell Plating | Cadmium | Connector Type | MIL-DTL-38999 Series III Connector |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Panel | Package / Case | :Jam Nut Receptacle |
| Shell Material | Aluminum | Connector Style | Receptacle |
| Insert Material | Hard Dielectric | Insertion Angle | 11-35 |
| Material - Body | :Aluminium | Shell Size, MIL | B |
| Contact Material | Copper Alloy | Length - Overall | 31.72 |
| Termination Style | Crimp | 1st Contact Gender | PIN |
| Mating Orientation | Self Locking | Number of Contacts | 13 |
| Contact Termination | :Crimp | Number of Positions | 13 |
| Shell Size - Insert | 11-35 | Bushing, Grommet Type | Silicone |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Panel | Shell Size - Insert (Convert To) | 11-35 |
Product Info
| Type | MIL-DTL-38999 Circular | Gender | RCP |
| Series | TV | Features | Shielded |
| Product Type | Receptacles | Service Class | olive drab cadmium plate aluminum, 500 hour salt spray, EMI -50dB @ 10GHz, 175°C |
| Specifications | MIL-DTL-38999 | ||
