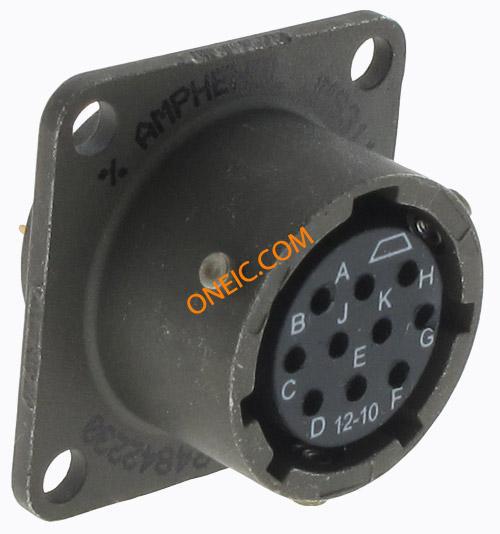

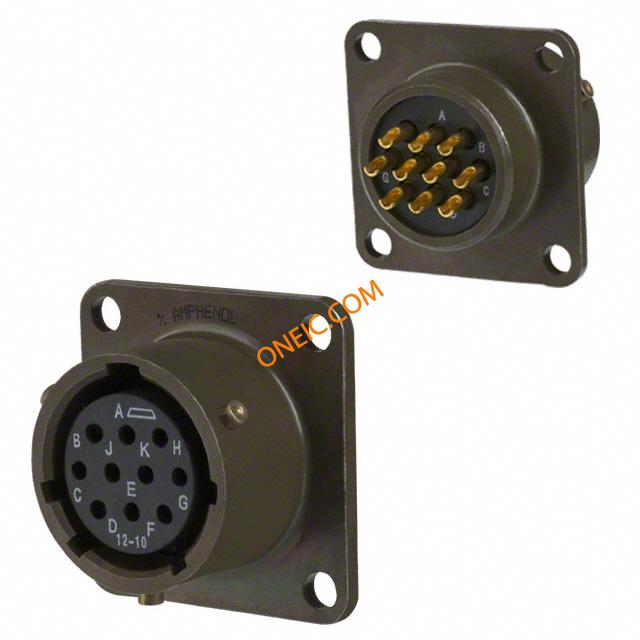

MS3112E12-10S
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular MIL Spec Connector | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-26482 |
| Tariff No | 85366910 | Approval Agency | :MIL-C-26482 Series I |
| Approval Agency Marking | UL Recognized | ||
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 7.5A |
Mechanical
| Weight | 0.014 | Packaging | Bulk |
| Shell Size | 12 | Wire Gauge | 20-24 |
| Orientation | N (Normal) | Shell Style | box mount receptacle |
| Termination | Solder | Weight (g): | 14.00000 |
| Contact Type | socket contacts | Mounting Type | Box Mount |
| Shell Plating | Olive Drab Chromate over Cadmium | Angle of Throw | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Olive Drab Cadmium |
| Mounting Style | Panel | Package / Case | Metal |
| Shell Material | Aluminum Alloy | Connector Usage | Bayonet |
| Insertion Angle | normal (no rotation) position | Material - Body | :Aluminium |
| Contact Material | Copper Alloy | Housing Material | Aluminum |
| Primary Material | 26482 MIL Spec | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Bayonet |
| Number of Contacts | Yes | Contact Termination | :Solder |
| Dielectric Material | Neoprene | Number of Positions | 10 |
| Shell Size - Insert | 12-10 | Mounting Hole Diameter | 0.12 " |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Layout, Typical | 10#20 |
| 1st Connector Mounting Type | :Box | ||
Product Info
| Type | MIL-C-26482 Circular | Class | E |
| Gender | RCP | Series | MS |
| Features | 5 Key/Keyway Polarization | Manufacturer | MS Series |
| Product Type | Receptacles | Service Class | environmental resisting connector |
| Application Specifics | True MIL | ||
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Sourcing & traceability
- Datasheet
- 12-070.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
