点击放大查看

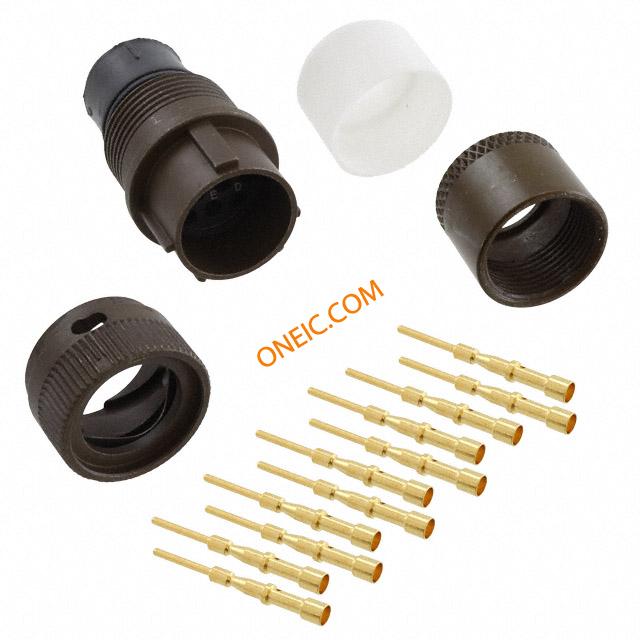

MS3126E12-10P
| Manufacturer | |
| Description | Conn MIL-C-26482 Circular PIN 10 POS Crimp ST Cable Mount 10 Terminal 1 Port MIL-C-26482 Series 1 Connector, Crimp Contacts CONN PLUG 10POS STRAIGHT W/PINS Circular MIL Spec Connector 10P SIZE 12 STRAIGHT PLUG PIN CONNECTOR, CIRCULAR, SIZE 12, 10WAY |
| Category |
商业参数
| 其他名称 | MS3126E12-10P-ND | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | MIL类型 | MIL-DTL-26482 |
| 海关税号 | 85369010 | 认证机构 | :MIL-C-26482 Series I |
电气参数
| 额定电压 | 600VAC | 最大额定电流 | 7.5A |
机械参数
| 重量 | 0.001 | 包装方式 | Bulk |
| 外壳尺寸 | 12 | 方向 | N (Normal) |
| 外壳样式 | In-Line | 端接方式 | Crimp |
| 重量（g） | 21.80400 | 安装类型 | Cable Mount |
| 外壳镀层 | Olive Drab Chromate over Cadmium | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 安装样式 | Wire | 封装形式 | :Straight Plug |
| 外壳材料（壳体） | Aluminum Alloy | 插入角度 | 12-10 |
| 本体材料 | :Aluminium | 触头材料 | Copper Alloy |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 配接方向 | Bayonet | 触点数 | 10 |
| 接触件端接 | :Crimp | 位数 | 10 |
| 外壳尺寸-插件 | 12-10 | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | MIL-C-26482 Circular | 连接器性别 | PL |
| 系列 | MS | 产品子类型 | Plugs |
环境参数
| 防护等级 | Environment Resistant | 工作温度 | -55°C ~ 125°C |
