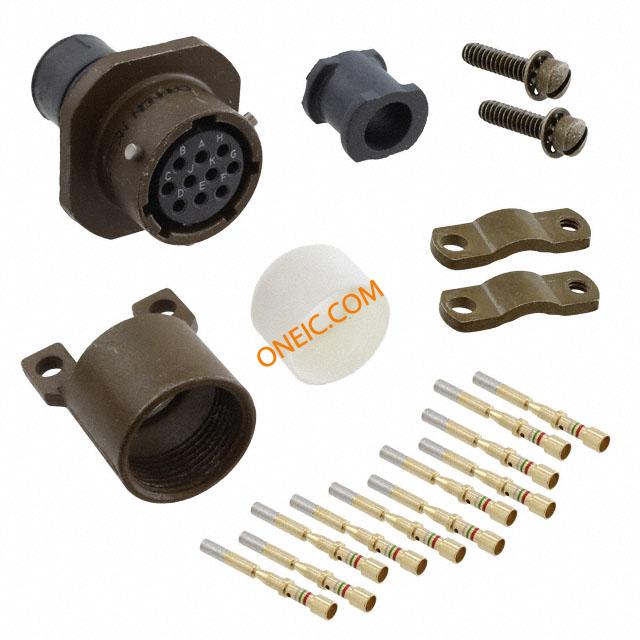

MS3121F12-10S
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | MS3121F12-10S-ND | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-26482 |
| Tariff No | 85369010 | Approval Agency | :MIL-C-26482 Series I |
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 7.5A |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shell Size | 12 | Orientation | N (Normal) |
| Shell Style | In-Line | Termination | Crimp |
| Weight (g): | 36.21700 | Mounting Type | Cable Mount |
| Shell Plating | Olive Drab Chromate over Cadmium | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Mounting Style | Wire | Shell Material | Aluminum Alloy |
| Insertion Angle | 12-10 | Material - Body | :Aluminium |
| Contact Material | Copper Alloy | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Bayonet |
| Number of Contacts | 10 | Contact Termination | :Crimp |
| Number of Positions | 10 | Shell Size - Insert | 12-10 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | 1st Connector Mounting Type | :Cable |
Product Info
| Type | MIL-C-26482 Circular | Gender | RCP |
| Series | MS | Features | Strain Relief |
| Product Type | Receptacles | ||
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Sourcing & traceability
- Datasheet
- PT.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
