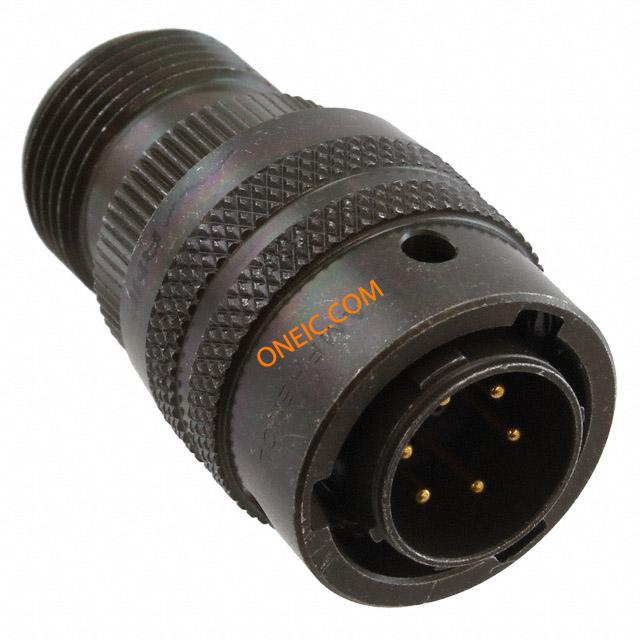

PT06A-10-6P
| Manufacturer | |
| Description | Conn Miniature Cylindrical PIN 6 POS Solder ST Cable Mount 6 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts CONN PLUG 6 POS STRAIGHT W/PINS Circular MIL Spec Connector 6P Size 10 Straight Plug Pin Cont connector, metal circ, class a, straight plug, size 10, 6 #20 solder pin contact |
| Category |
商业参数
| 其他名称 | PT06A106P | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS non-compliant | 欧盟RoHS | Not Compliant |
| MIL类型 | MIL-DTL-26482 | 认证机构标志 | UL Recognized |
电气参数
| 额定电压 | 600VAC | 最大额定电流 | 7.5A |
机械参数
| 直径 | 21.81 | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 10 |
| 导线线规 | 20-24 | 方向 | N (Normal) |
| 外壳样式 | straight plug | 端接方式 | Solder |
| 触头类型 | 6Signal | 安装类型 | Cable Mount |
| 外壳镀层 | Cadmium | 行程角度 | Straight |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Olive Drab Cadmium |
| 安装样式 | Wire | 封装形式 | Metal |
| 外壳材料（壳体） | Aluminum Alloy | 连接器用途 | Bayonet |
| 插入角度 | normal (no rotation) position | 触头材料 | Copper Alloy |
| 壳体材料 | Aluminum | 总长度 | 40.86 |
| 主要材料 | 26482 Commercial | 端接样式 | Solder |
| 第一触头极性 | PIN | 配接方向 | Bayonet |
| 触点数 | 6 | 介电材料 | Neoprene |
| 位数 | 6 | 外壳尺寸-插件 | 10-6 |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 6#20 |
| 外壳尺寸-插入件（转换至） | 10-6 | ||
产品信息
| 类型 | Miniature Cylindrical | 类别 | A |
| 连接器性别 | PL | 系列 | PT |
| 产品特性 | 5 Key/Keyway Polarization | 制造商全称 | PT Series |
| 产品子类型 | Plugs | 服务等级（或'使用等级'，根据具体描述） | general duty back shell |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
