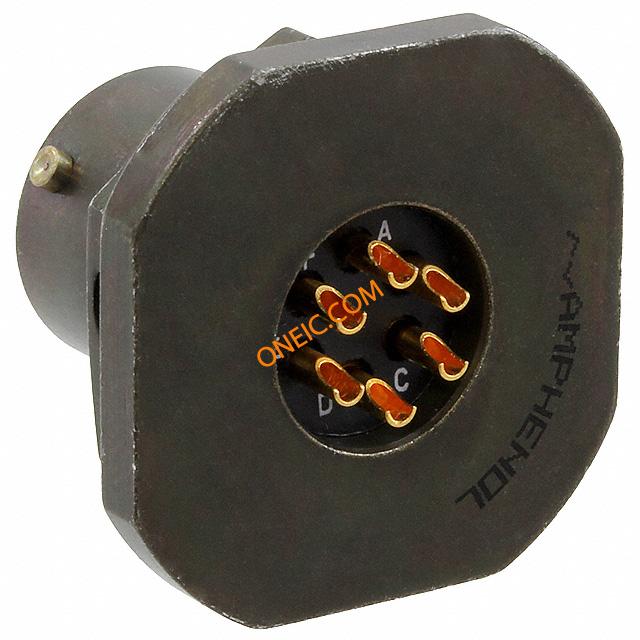

PT07A-10-6S

Business

Other Names	PT07A106S	Product Category	Circular MIL Spec Connector
Standard Package	Bulk

Voltage Rating

600VAC

Current Rating (Max)

7.5A

Depth	26.97	Height	26.97
Weight	0.001	Packaging	Bulk
Cable Exit	No	Shell Size	10
Wire Gauge	20-24	Orientation	N (Normal)
Shell Style	jam nut receptacle	Termination	Solder
Contact Type	6Signal	Mounting Type	Jam Nut
Shell Plating	Olive Drab Cadmium	Angle of Throw	Straight
Connector Type	Receptacle, Female Sockets	Contact Finish	Gold
Fastening Type	Bayonet Lock	Housing Finish	Olive Drab Cadmium
Mounting Style	Panel	Package / Case	:Jam Nut Receptacle
Shell Material	Aluminum Alloy	Connector Usage	Bayonet
Insertion Angle	normal (no rotation) position	Material - Body	:Aluminium
Panel Thickness	0.125 "	Contact Material	Copper Alloy
Housing Material	Aluminum	Length - Overall	23.54
Primary Material	26482 Commercial	Termination Style	Solder
1st Contact Gender	SKT	Mating Orientation	Bayonet
Number of Contacts	6	Contact Termination	:Solder
Dielectric Material	Neoprene	Number of Positions	6
Shell Size - Insert	10-6	Shell Material, Finish	Aluminum, Olive Drab Cadmium Plated
Contact Layout, Typical	6#20	1st Connector Mounting Type	:Panel
Shell Size - Insert (Convert To)	10-6
