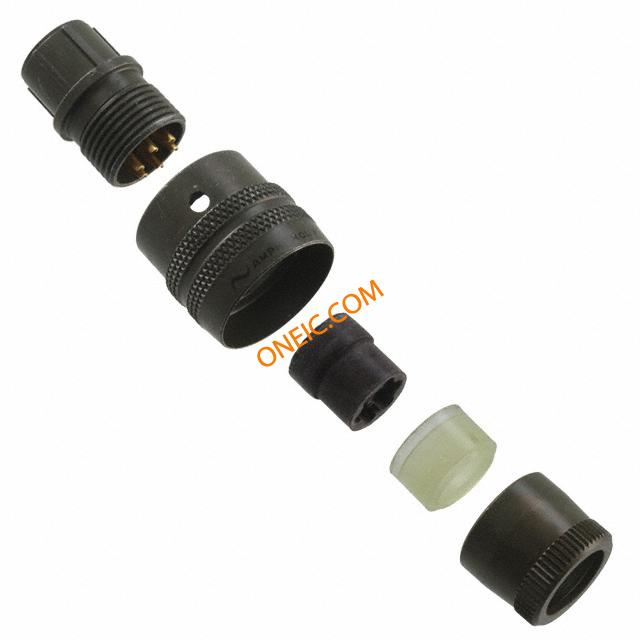

PT06E-10-6S
| Manufacturer | |
| Description | Conn MIL-C-26482 Circular SKT 6 POS Solder ST Cable Mount 6 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts CONN PLUG 6 POS STRAIGHT W/SCKT connector;metal circular;straight plug;size 10;6 #20 solder socket contact Circular MIL Spec Connector 6P Size 10 Straight Socket Plug Conn Miniature Cylindrical SKT 6 POS Solder ST Cable Mount 6 Terminal 1 Port CIRCULAR CONNECTOR PLUG, SIZE 10, 6POS, CABLE connector, metal circular, straight plug, size 10, 6 #20 solder socket contact |
| Category |
商业参数
| 其他名称 | PT06E106S | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS non-compliant | MIL类型 | MIL-DTL-26482 |
| 海关税号 | 85366930 | 认证机构标志 | UL Recognized |
电气参数
| 额定电压 | 600VAC | 最大额定电流 | 7.5A |
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 外壳尺寸 | 10 | 导线线规 | 20-24 |
| 方向 | N (Normal) | 外壳样式 | straight plug |
| 端接方式 | Solder | 触头类型 | socket contacts |
| 基体材料 | :Aluminum | 安装类型 | Cable Mount |
| 外壳镀层 | Chromate over Cadmium, Olive Drab | 行程角度 | Straight |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Olive Drab Cadmium |
| 安装样式 | Wire | 封装形式 | Metal |
| 外壳材料（壳体） | Aluminum Alloy | 连接器用途 | Bayonet |
| 插入角度 | normal (no rotation) position | 本体材料 | :Aluminium |
| 壳体材料 | Aluminum | 主要材料 | 26482 Commercial |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 配接方向 | Bayonet | 触点数 | 6 |
| 介电材料 | Neoprene | 位数 | 6 |
| 外壳尺寸-插件 | 10-6 | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 典型触点布局 | 6#20 | ||
产品信息
| 类型 | MIL-C-26482 Circular | 类别 | E |
| 连接器性别 | PL | 系列 | PT |
| 产品特性 | 5 Key/Keyway Polarization | 制造商全称 | PT Series |
| 产品子类型 | Plugs | 服务等级（或'使用等级'，根据具体描述） | environmental resisting open wire seal with grommet and nut |
| 应用细节 | Commercial | ||
环境参数
| 防护等级 | Environment Resistant | 工作温度 | -55°C ~ 125°C |
