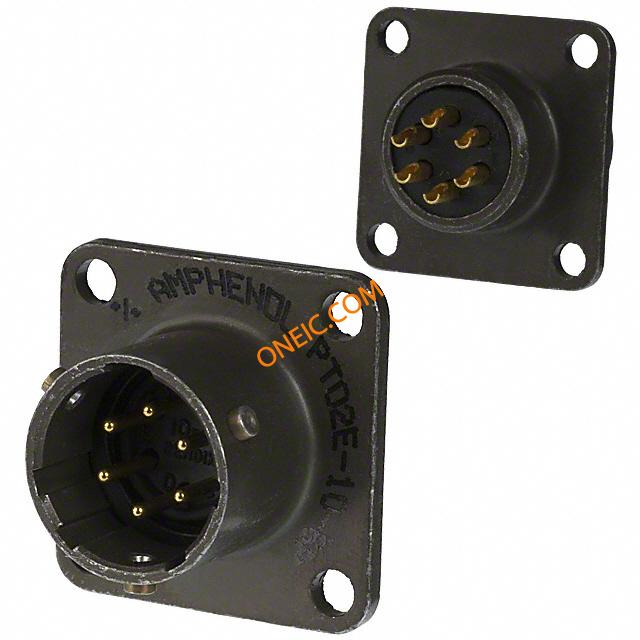

PT02E-10-6P
| Manufacturer | |
| Description | Conn Miniature Cylindrical PIN 6 POS Solder ST Box Mount 6 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts CONN RECEPT 6POS W/PINS SOLDER Circular MIL Spec Connector 6P Size 10 Box Mount Pin Receptacle connector, metal circ, class e, box mount recept, size 10, 6 #20 solder pin contact |
| Category |
商业参数
| 产品类别 | Circular MIL Spec Connector | 标准包装数量 | Bulk |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 欧盟RoHS | Not Compliant |
| MIL类型 | MIL-DTL-26482 | 认证机构标志 | UL Recognized |
电气参数
| 额定电压 | 600VAC | 最大额定电流 | 7.5A |
机械参数
| 深度 | 23.82 | 高度 | 23.82 |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 10 | 导线线规 | 20-24 |
| 方向 | N (Normal) | 外壳样式 | box mount receptacle |
| 端接方式 | Solder | 触头类型 | 6Signal |
| 安装类型 | Box Mount | 外壳镀层 | Cadmium |
| 行程角度 | Straight | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Panel |
| 封装形式 | Metal | 外壳材料（壳体） | Aluminum Alloy |
| 连接器用途 | Bayonet | 插入角度 | normal (no rotation) position |
| 触头材料 | Copper Alloy | 壳体材料 | Aluminum |
| 总长度 | 24.33 | 主要材料 | 26482 Commercial |
| 端接样式 | Solder | 第一触头极性 | PIN |
| 配接方向 | Bayonet | 触点数 | 6 |
| 介电材料 | Neoprene | 位数 | 6 |
| 外壳尺寸-插件 | 10-6 | 安装孔直径 | 0.12 " |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 6#20 |
| 外壳尺寸-插入件（转换至） | 10-6 | ||
产品信息
| 类型 | Miniature Cylindrical | 类别 | E |
| 连接器性别 | RCP | 系列 | PT |
| 产品特性 | 5 Key/Keyway Polarization | 制造商全称 | PT Series |
| 产品子类型 | Receptacles | 服务等级（或'使用等级'，根据具体描述） | environmental resisting open wire seal with grommet and nut |
| 应用细节 | Commercial | ||
环境参数
| 防护等级 | Environment Resistant | 工作温度 | -55°C ~ 125°C |
