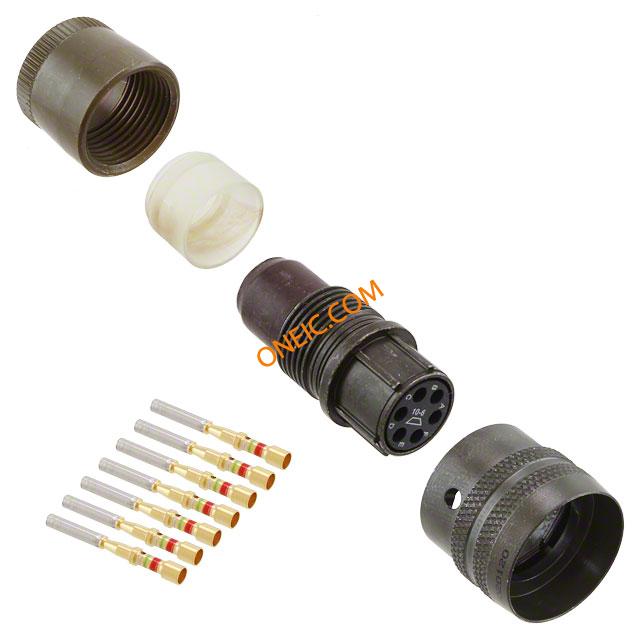

PT06SE-10-6S

Manufacturer	Amphenol Corporation
Description	Conn Miniature Cylindrical SKT 6 POS Crimp ST Cable Mount 6 Terminal 1 Port MIL-C-26482 Series 1 Connector, Crimp Contacts CONN PLUG 6 POS STRAIGHT W/SCKT Circular MIL Spec Connector 6P Size 10 Straight Socket Plug
Category	连接器解决方案圆形连接器军用圆形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

PT06SE106S

标准包装数量

Bulk

合规参数

RoHS

Lead free / RoHS non-compliant

MIL类型

MIL-DTL-26482

电气参数

额定电压

600VAC

最大额定电流

7.5A

机械参数

包装方式	Bulk	外壳尺寸	10
导线线规	20-24	方向	N (Normal)
外壳样式	straight plug	端接方式	Crimp
触头类型	socket contacts	安装类型	Cable Mount
外壳镀层	Chromate over Cadmium, Olive Drab	连接器类型	MIL-C-26482, Series I, Miniature Cylindrical Connector, Crimp Type
接触镀层	Gold	紧固类型	Bayonet Lock
安装样式	Wire	外壳材料（壳体）	Aluminum Alloy
插入角度	10-6	端接样式	Crimp
第一触头极性	Socket (Female)	配接方向	Bayonet
触点数	Yes	位数	6
外壳尺寸-插件	10-6	外壳材料及表面处理	Aluminum, Olive Drab Cadmium Plated

产品信息

类型	Miniature Cylindrical	连接器性别	PL
系列	PT	产品子类型	Plugs
服务等级（或'使用等级'，根据具体描述）	environmental crimp

环境参数

防护等级

Environment Resistant

工作温度

-55°C ~ 125°C

Documents & Media

PDF Document

12-070.pdf

PDF Document

MIL-C-26482, Series 1

PDF Document

12-070-180554.pdf
