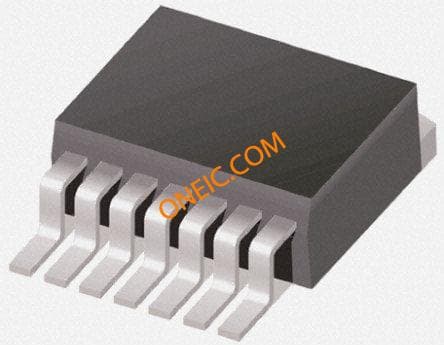

LT1374HVIR#PBF
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | LT1374HVIRPBF | Standard Package | 50 |
| Standard Package Name | DDPAK | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| PWM Type | Current Mode | Output Type | Adjustable |
| Converter Type | Step Down | Voltage Rating | 32 V |
| Line Regulation | 0.03%/V | Current - Output | 4.5A |
| Number of Outputs | 1 | Regulator Topology | Step Down |
| Switching Regulator | Yes | Frequency - Switching | 500kHz |
| Synchronous Rectifier | No | Voltage - Input (Min) | 2.42 V ~ 27.5 V |
| Current - Output (Typ) | 4.5A | Voltage - Output (Max) | 5 V |
| DC Voltage - Input (Min) | 5 V | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 10.922mm | Height | 3.175mm |
| Length | 10.541mm | Weight | 0 |
| Packaging | Tube | Tab Width | Tab |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Number of Pins | :7 | Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Package Cooled | DDPAK | Material Finish | :- |
| Length - Overall | 10.54(Max) | Package Quantity | DDPAK |
| Size / Dimension | 10.541 x 10.922 x 3.175mm | Number of Positions | 8 |
| Shell Size - Insert | 4.57(Max) | Supplier Device Package | D2PAK-7 |
Product Info
| Type | Step Down | Printed Circuit Board | 7 |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Online Document
Similar Parts
Sourcing & traceability
- Datasheet
- LT1374
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
