LTM8042EV-1#PBF
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | LTM8042EV1PBF | Standard Package | 170 |
| Standard Package Name | LGA | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
Electrical
| Dimming | Analog, PWM | Power (Watts) | 11W |
| Voltage Rating | :3V to 30V | Current - Output | 350mA |
| Number of Outputs | 1 | Frequency - Switching | :2MHz |
| Voltage - Input (Min) | 2 ~ 32 V | Voltage - Supply (Min) | 30 |
| Voltage - Continuous Operating (Max) (MCOV) | :30V | ||
Mechanical
| Width | 9 | Weight | 0.002 lb (0.91g) |
| Packaging | Tray | Case Color | :LGA |
| Mounting Type | Surface Mount | Number of Pins | :56 |
| Package / Case | 77-BLGA | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 15 | Package Quantity | LGA |
| Size / Dimension | 0.59" L x 0.35" W x 0.11" H (15.0mm x 9.0mm x 2.8mm) | Number of Positions | 77 |
| Shell Size - Insert | 2.92(Max) | ||
Product Info
| Type | Constant Current | Features | Remote On/Off, OTP, SCP |
| Topology | Boost, Buck, Buck-Boost | Base Unit | :8042 |
| Application Specifics | :Automotive and Avionic Lighting, Display Backlighting, Illumination, Scanners | Printed Circuit Board | 77 |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Online Document
PDF Document
Online Document
Similar Parts
SI2319DS-T1-E3
Vishay Intertechnology, Inc.
$1.8639
Details
LTM8042EV-1#PBF
Analog Devices, Inc.
$103.3845
Details
SI2319DS-T1-E3
Vishay Intertechnology, Inc.
Details

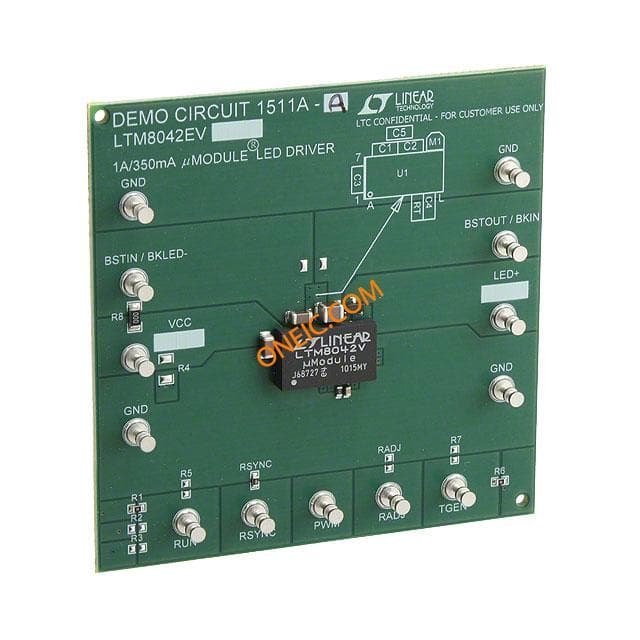

DC1511A-A
Analog Devices, Inc.
$614.8336
Details

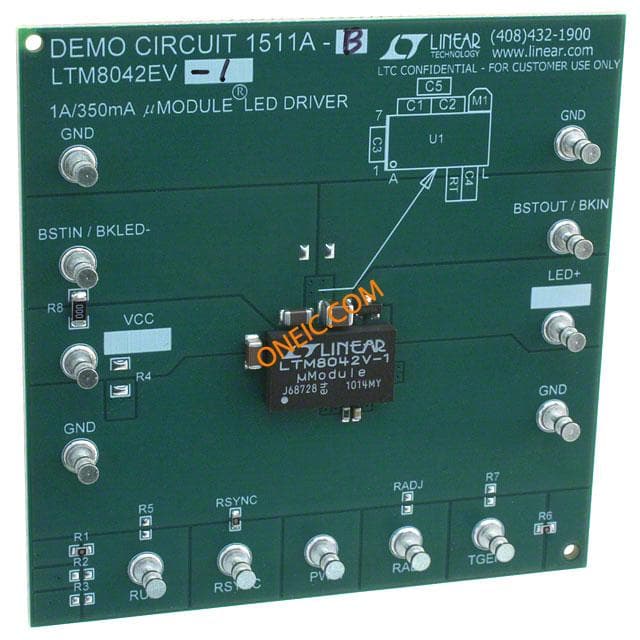

DC1511A-B
Analog Devices, Inc.
$609.1202
Details
3209885-M
MULTICORE (SOLDER)
$933.9120
Details
LAW51M-HYJZ-24
OSRAM SYLVANIA
Details
LCWW5AM-JXKX-4O9Q
OSRAM SYLVANIA
$20.4000
Details

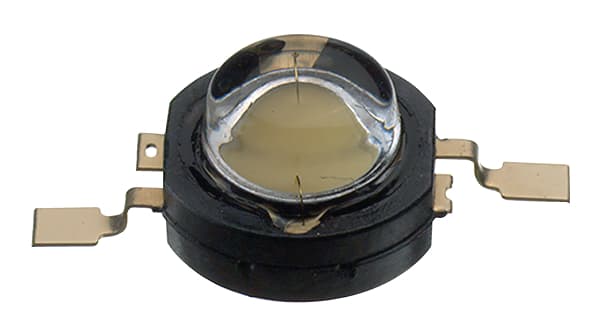

LXHL-BR02
