AD7466BRTZ-R2
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | AD7466BRTZ-R2CT | Standard Package | Tape & Reel |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Interface | Serial (SPI, QSPI, Microwire) | Linearity | -0.9LSB/1.5LSB |
| S/N Ratio | 71(Typ) dB | Input Type | Voltage |
| Resolution | 12 Bit | Input Signal | Single-Ended |
| INL/DNL (LSB) | ±1.5LSB | Power - Input | Single |
| Power - Rated | 0.9 W | Converter Type | General Purpose |
| Data Interface | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | Input Polarity | Unipolar |
| Number of Bits | 12 | Voltage Rating | 3.6V |
| Data Rate (Max) | 200 kSPs | Voltage - Rated | 3.6 |
| Current - Output | :300µA | Voltage - Supply | 3.3 V |
| Resolution (Bits) | :12bit | Voltage Reference | Supply |
| Number of Channels | 1 Channel | Number of Elements | 1 |
| Sampling Frequency | 200 ksps | Number of ADCs / DACs | 1 |
| Voltage Supply Source | Single | Power Dissipation (Max) | 0.9 mW |
| Differential Nonlinearity | -0.9/1.5LSB | Voltage Supply - Internal | :1.6V to 3.6V |
| Sampling Rate (Per Second) | 200k | Differential - Input:Output | No |
| Voltage - Supply Span (Typ) | Not Required V | S/N Ratio, ADCs / DACs (db) Typ | 71 dB |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Width | 1.6 | Weight | 0.000033 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :6 | Package / Case | 6SOT-23 |
| Package Cooled | SOT-23 | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 2.9 | Package Quantity | SOT-23 |
| Number of Positions | 6 | Shell Size - Insert | 1.15 |
| Supplier Device Package | SOT-23-6 | ||
Product Info
| Series | AD7466 | Architecture | SAR |
| Printed Circuit Board | 6 | Number of A/D Converters | 1 |
| Number of Inputs and Type | 1 Single-Ended, Unipolar | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts
AD8510ARZ
analog devices
$14.6662
Details
AD8610BRZ
analog devices
$128.0705
Details
AD7466BRTZ-R2
analog devices
$47.9244
Details
AD7414ARTZ-0500RL7
analog devices
$18.2764
Details
AD797ARZ
analog devices
$108.4572
Details
EVAL-AD7466CBZ
analog devices
$379.9160
Details
AD797BRZ
analog devices
$145.0590
Details
REF192FSZ
analog devices
$33.9184
Details
ADR421ARMZ
analog devices
$36.2855
Details

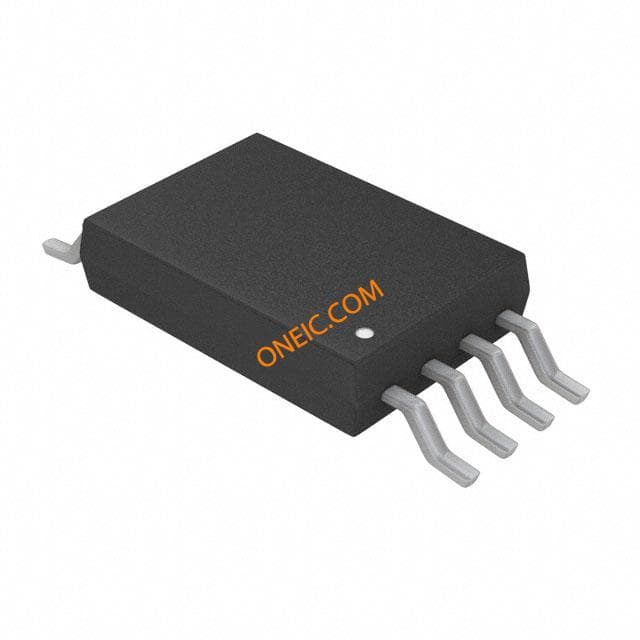

REF192GRUZ
