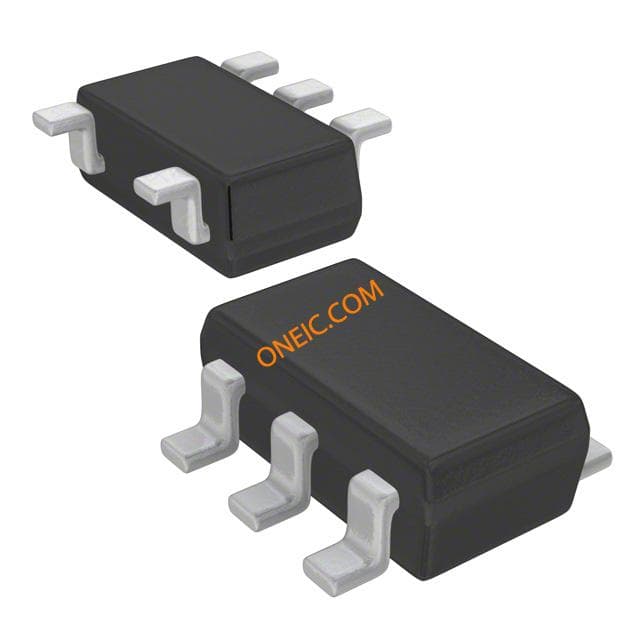

AD8605ARTZ-REEL7
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | AD8605ARTZREEL7CT | Standard Package | Cut Tape, Tape & Reel |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423300 |
| Rad Hardened | No | ||
Electrical
| Gain | 120 dB | PSRR | 80 dB |
| Slew Rate | 5@5V V/us | Output Type | CMOS|Rail to Rail |
| Power - Input | Single | Transistor Type | :CMOS |
| CMRR, PSRR (Typ) | 85 dB | Current - Output | 1mA |
| Current - Supply | 1.2@5V mA | Voltage - Supply | 2.7 V |
| Power Supply Type | Single | Number of Channels | 1 |
| Number of Elements | 1 | Current - Input Bias | 0.2pA |
| Number of ADCs / DACs | :1 | Voltage - Input (Min) | 80µV |
| Gain Bandwidth Product | 10 MHz | Rail-to-Rail Operation | Rail to Rail Input/Output |
| Current - Input Bias (Max) | 0.000001@5V uA | Current - Output / Channel | 80mA |
| Input Offset Current (Max) | 0.0000005@5V | Input Noise Current Density | 0.01@5V pA/rtHz |
| Input Noise Voltage Density | 8@5V nV/rtHz | Voltage - Supply Span (Typ) | Not Required V |
| Voltage - Input Offset (Max) | 0.3@5V mV | Common Mode Transient Immunity (Min) | Extended Industrial |
| Voltage - Output Difference (Typ) @ Distance | 120 dB | ||
Mechanical
| Width | 1.6 | Weight | 0.002 |
| Bandwidth | :10MHz | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Number of Pins | :5 | Package / Case | 5SOT-23 |
| Package Cooled | SOT-23 | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 2.9 | Package Quantity | SOT-23 |
| Number of Positions | 5 | Shell Size - Insert | 1.15 |
| Supplier Device Package | SOT-23-5 | ||
Product Info
| Type | General Purpose Amplifier | DELETED | Compliant |
| Shutdown | No | Technology | CMOS |
| Manufacturer | Low Noise Amplifier | Amplifier Type | General Purpose |
| Number of Circuits | 1 | Printed Circuit Board | 5 |
Environmental
| Operating Temperature | -40 to 125 °C | ||
Documents & Media
Sourcing & traceability
- Datasheet
- AD8605_8606_8608.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
