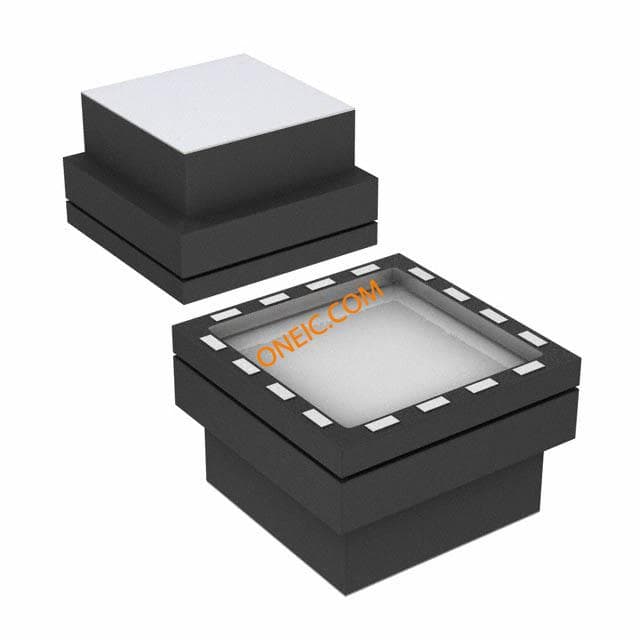

ADIS16209CCCZ
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Trays | Factory Pack Quantity | 168 |
| Standard Package Name | LGA | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Rad Hardened | No | ||
Electrical
| Noise | 0.19mg/Hz rms | Output | :Digital |
| Interface | :SPI | Output Type | Digital - SPI |
| Sensitivity | 0.245mg/LSB | Sensor Type | Inclinometer and Accelerometer |
| Sensing Angle | Dual | Number of Bits | :12 |
| Voltage Rating | 3 V | Current - Output | 11 mA |
| Current - Supply | :14mA | Voltage - Supply | 3 to 3.6 V |
| Digital I/O Lines | SPI | Number of Channels | :2 |
| Voltage - Supply (Min) | 3.6 V | ||
Mechanical
| Axis | Dual | Depth | 9.2 mm |
| Width | 9.2mm | Height | 3.9mm |
| Length | 9.35mm | Weight | 0.0001 |
| Packaging | Tray | Termination | :SMD |
| Acceleration | ±1.7 g | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :16 |
| Package / Case | 16LGA | Package Cooled | LGA |
| Material Finish | :- | Package Quantity | LGA |
| Size / Dimension | 9.35 x 9.2 x 3.9mm | Number of Positions | 16 |
Product Info
| Series | * | Number of Axes | 2 |
| Measurement Type | :X, Y | RF Family/Standard | ADIS16209 |
Environmental
| Acceleration Range | :± 1.7g | Operating Temperature | -40 to 125 °C |
| Operating Temperature - Junction | 125C | ||
Documents & Media
PDF Document
PDF Document
.jpg&w=3840&q=75)
Sourcing & traceability
- Datasheet
- ADIS16209.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
