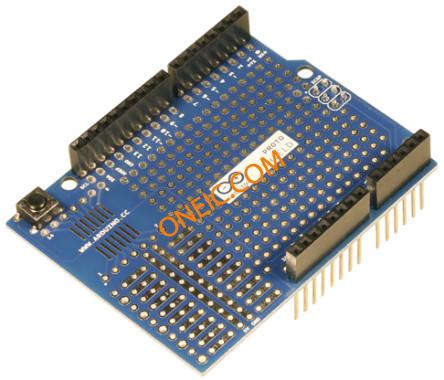

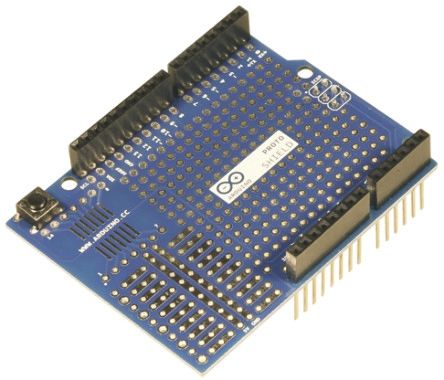

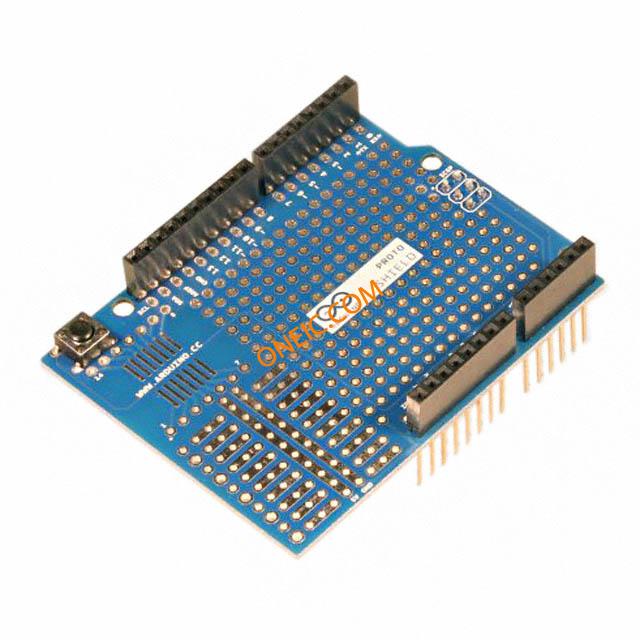

A000077
| Manufacturer | |
| Description | Development Boards & Kits - AVR ARDUINO PROTO SHIELD REV 3 PROTO SHIELD REV3 (ASSEMBLED) Arduino Proto Shield Rev3 assembled PROTOTYPE SHIELD, FOR ARDUINO BOARD Arduino Proto 扩展（组装） Shield Ver. 3 |
| Category |
商业参数
| 产品 | Development Boards | 其他名称 | 1050-1035 |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | AVR | 接口 | SPI |
| 供电电压 | 5 V | ||
机械参数
| 重量 | 0.05 | 包装方式 | Bulk |
| 尺寸/外形 | 2.7 in x 2.1 in | ||
产品信息
| 产品特性 | :1 x Reset button, 1 x ICSP Connector, 14 x Pin SMD Footprint, 20 x Pin Through Hole Footprint | 技术 | Microcontroller |
| 套件内容 | Arduino Prototype Shield Assembled | 卡标准 | Development Kit |
| 附件类型 | Prototyping Board | 适用产品/相关产品 | Arduino Board |
环境参数
| 机械寿命 | New At Mouser | ||
