08056D106KAT2A
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 20000 | Product | General Type MLCCs |
| Unit Pack | 3000 | Other Names | 478-1417-1 |
| Product Category | Multilayer Ceramic Capacitors MLCC - SMD/SMT | Standard Package | Tape & Reel |
| Factory Pack Quantity | 3000 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85322400 | Rad Hardened | No |
Electrical
| Voltage | 6.3 Vdc | Tolerance | 10 % |
| Capacitance | 10 uF | Range deg/s | :- |
| Voltage Rating | 6.3 V | Capacitance - Input | :0805 [2012 Metric] |
| Capacitance @ Vr, F | :X5R | Dielectric Strength | Nobreakdownorvisualdefects |
| Insulation Resistance | 500Megohms | Voltage - Supply (Min) | 6.3V |

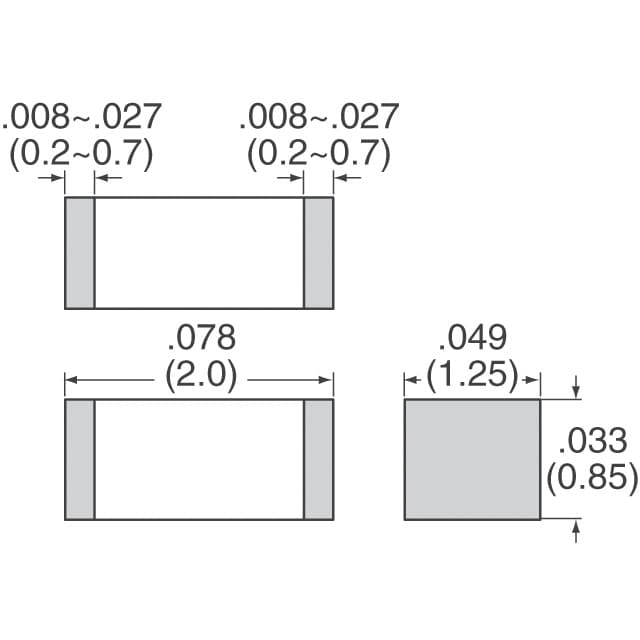

Mechanical
| Depth | 1.25 mm | Width | 1.25 mm |
| Height | 1.4(Max) mm | Length | 0.079in.±0.008in. |
| Weight | 0.0002 | Diameter | Not Required mm |
| Packaging | Reel | Thickness | 0.055in. |
| Termination | SMT | Construction | SMT Chip |
| Mounting Type | Surface Mount | Reel Capacity | :3000 |
| Terminal Type | :Surface Mount (SMD, SMT) | Mounting Style | Surface Mount |
| Number of Pins | :2 | Package / Case | 0805 |
| Material Finish | :MSL 1 - Unlimited | Thickness (Max) | 0.055" (1.40mm) |
| Length - Overall | 2.01 mm | Material - Blade | Ceramic |
| Size / Dimension | 1.25 mm W x 2.01 mm L x 1.4 mm H | Termination Style | SMD/SMT |
| Dielectric Material | X5R | Shell Size - Insert | 0805(2012mm) |
| Mounting Hole Diameter | 0805 | Wire Gauge or Range - AWG | Not Required |
Product Info
| Type | Flat | Series | 0805 |
| Applications | General Purpose | Failure Rate | Not Required |
| Manufacturer | AVX | Number of Units | 3000 |
Environmental
| Operating Temperature | -55 to 85 °C | Temperature Coefficient | X5R |
| Operating Temperature - Junction | 85°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
.jpg&w=3840&q=75)
Sourcing & traceability
- Datasheet
- cx5r.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
