12065C104KAT2A
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 4000 | Product | General Type MLCCs |
| Unit Pack | 4000 | Other Names | 478-1556-1 |
| Product Category | Multilayer Ceramic Capacitors MLCC - SMD/SMT | Standard Package | Tape & Reel |
| Factory Pack Quantity | 4000 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85322400 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Voltage | 50 Vdc | Tolerance | 10 % |
| Capacitance | 0.1 uF | Range deg/s | :- |
| Voltage Rating | 50 V | Voltage - Nominal | 50V |
| Capacitance - Input | :1206 [3216 Metric] | Capacitance @ Vr, F | :X7R |
| Resistance Tolerance | -10% | Voltage - Supply (Min) | 50V |
| Capacitance @ Frequency | 100nF | Dissipation Factor (DF) | 2.5 |
Mechanical
| Depth | 1.6 mm | Width | 1.6 mm |
| Height | 0.94(Max) mm | Length | 3.2mm |
| Weight | 0.00004 | Diameter | Not Required mm |
| Packaging | Reel | Termination | NISN |
| Construction | Flat | Contact Type | BME |
| Mounting Type | Surface Mount | Reel Capacity | :3000 |
| Terminal Type | :Surface Mount (SMD, SMT) | Mounting Style | Surface Mount |
| Number of Pins | :2 | Package / Case | 1206 |
| Material Finish | :MSL 1 - Unlimited | Thickness (Max) | 0.037" (0.94mm) |
| Length - Overall | 3.2 mm | Package Quantity | 4000 |
| Size / Dimension | 1.6 mm W x 3.2 mm L x 0.94 mm H | Tape Width - Max | :8mm |
| Termination Style | SMD/SMT | Dielectric Material | X7R |
| Shell Size - Insert | 1206(3216mm) | Mounting Hole Diameter | 1206 |
| Wire Gauge or Range - AWG | Not Required | ||
Product Info
| Spg | 4000 | Type | Commercial Surface Mount Chip |
| Style | CHIP | Series | 1206 |
| Matchcode | KC100N1206X7R050K NORM | Tape Type | PAPER |
| Technology | Standard | Applications | General Purpose |
| Failure Rate | Not Required | Number of Units | 100 |
| Standard Leadtime | 16 weeks | ||
Environmental
| Operating Temperature | -55 to 125 °C | Temperature Coefficient | X7R |
| Maximum Temperature Limit | +125°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
12065C104KAT2A
avx
$0.1544
Details
C1206C104K5RACTU
Yageo Corporation
$0.0714
Details
VJ1206Y104KXBMT
vishay / vitramon
$0.1904
Details
C1206C104K2RACTU
Yageo Corporation
$0.4080
Details
1206YC104KAT2A
avx
$0.3794
Details

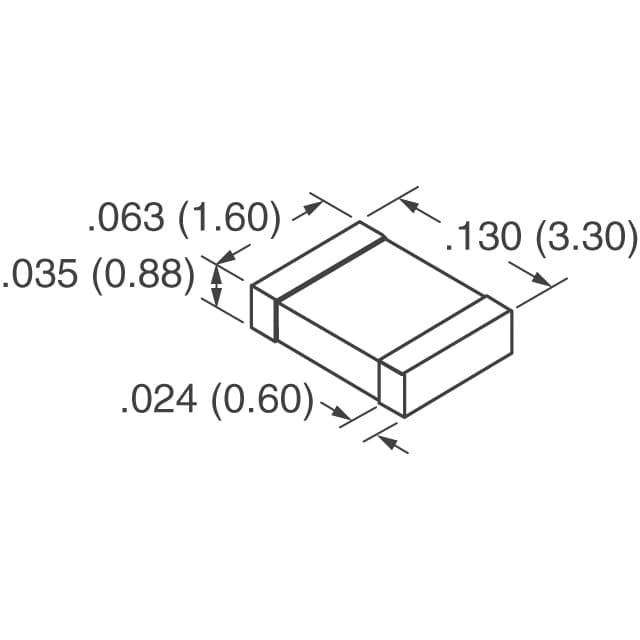

C1206X104K5RACTU
Yageo Corporation
$0.7303
Details
VJ1206Y104KXBAT
vishay / vitramon
$0.8296
Details
C1206C104K1RACTU
Yageo Corporation
$0.1462
Details

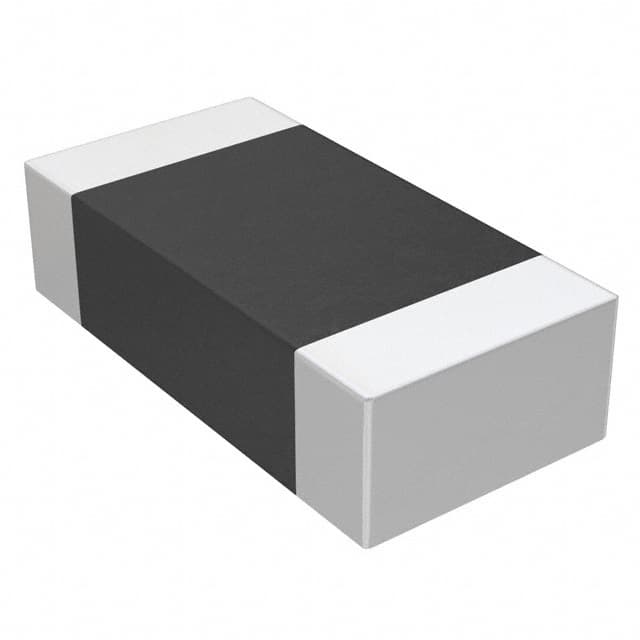

CC1206KRX7R9BB104
Yageo
$0.0714
Details
1206ZC104KAT2A
avx
$0.3910
Details

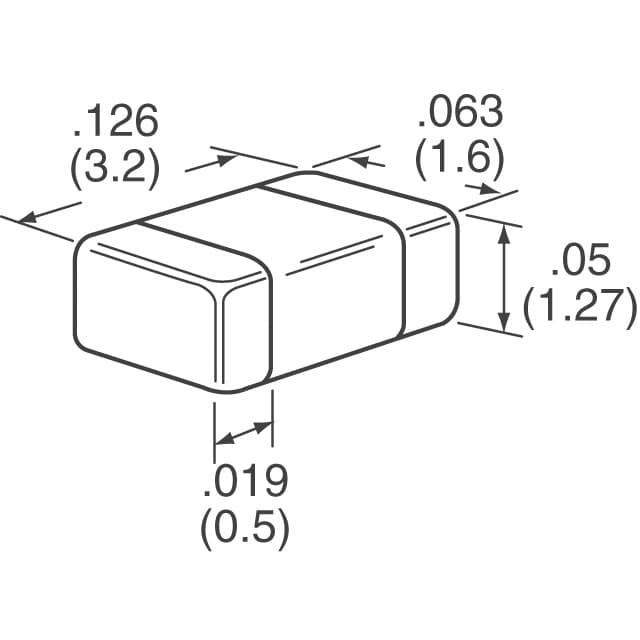

12065A222JAT2A
