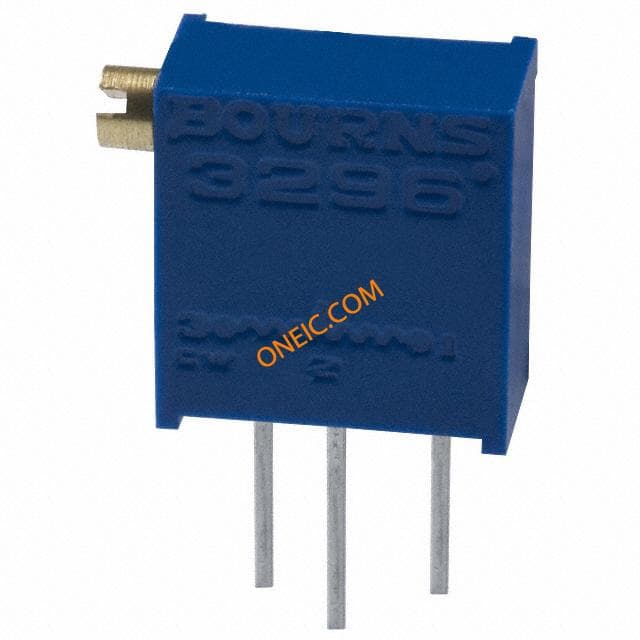

3296Z-1-502LF
| Manufacturer | |
| Description | Res Cermet Trimmer 5K Ohm 10% 1/2W 25(Elec)Turn 2.19mm (11.05 X 4.83 X 10.03mm) Pin Thru-Hole Tube Res Cermet Trimmer 5K Ohm 10% 0.5W(1/2W) 25(Elec)Turn 2.19mm (11.05 X 4.83 X 10.03mm) Pin Thru-Hole Tube TRIMMER 5K OHM 0.5W PC PIN 3296Z side adj cermet trimmer 5K 10% Trimmer;Cermet;Rest 5 Kilohms;PCB;Pwr-Rtg 0.5W;Dim 0.375inLx0.19inWx0.395inH Trimmer Resistors - Through Hole 3/8 5Kohms Sealed Horizontal Adjust TRIMMER, POT, 5KOHM, 10%, 25TURN, TH TRIMMER, POTENTIOMETER, 5KOHM 25TURN THRU HOLE Trimmer;Cermet;Rest5Kilohms;PCB;Pwr-Rtg0.5W;Dim0.375InLx0.19InWx0.395InH Potentiometer: mounting; multiturn; 5kΩ; 500mW; THT; ±10%; linear Trimmer Cermet 5 kOhm linear 500 mW, 3296Z-1-502LF, Bourns Bourns 3296Z 系列 25 转 通孔 微调电阻器, 带 焊针接端, 5kΩ ±10%, 0.5W, ±100ppm/°C |
| Category |
Business
| Product | Trimmers | Product Category | Trimmer Resistors - Through Hole |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85334010 |
Electrical
| Tolerance | 10 % | Resistance | 5 KOhm |
| Resolution | Infinite | Element Type | Cermet |
| Power (Watts) | 0.5W, 1/2W | Power - Rated | 1/2 W |
| Voltage - Rated | 300V | Resistance (Ohms) | 5k |
| Dielectric Strength | 900VAC | Resistance Tolerance | 5kΩ |
| Insulation Resistance | 1000Megohms(Min.)@500VDC | DC Resistance (DCR) (Max) | :5kohm |
Mechanical
| Depth | 4.83mm | Taper | Linear |
| Height | 10.03mm | Length | 9.53mm |
| Torque | 3Oz./in. | Weight | 0.00085 |
| Packaging | Tube | Size - Body | 10 x 9.5 x 4.8mm |
| Termination | SolderablePins | Mounting Type | Through Hole |
| Mounting Style | PCB | Shaft Diameter | 2.19 mm |
| Length - Overall | 11.05 | Material - Blade | Cermet |
| Package Quantity | 50 | Size / Dimension | Square - 0.375" L x 0.190" W x 0.395" H (9.53mm x 4.83mm x 10.03mm) |
| Pitch - Connector | 5.08x2.54mm | Termination Style | Pin |
| Conductor Material | cermet | Resistive Material | Cermet |
Product Info
| Spg | 50 | Type | Trimmer |
| Series | 3296Z | Technology | Cermet |
| Product Type | Multi-Turn | Adjustment Type | Side Adjustment |
| Characteristics | linear | Number of Turns | 25(Elec) Turns |
| Number of Units | 1 | Type Attributes | 3/8" |
Environmental
| Switching Cycles | 200Cycles | Operating Temperature | -55 to 125 °C |
| Temperature Coefficient | ±100ppm/°C | Operating Temperature - Junction | +150°C |
Documents & Media
Similar Parts
3296Z-1-502LF
bourns
Res Cermet Trimmer 5K Ohm 10% 1/2W 25(Elec)Turn 2.19mm (11.05 X 4.83 X 10.03mm) Pin Thru-Hole Tube Res Cermet Trimmer 5K Ohm 10% 0.5W(1/2W) 25(Elec)Turn 2.19mm (11.05 X 4.83 X 10.03mm) Pin Thru-Hole Tube TRIMMER 5K OHM 0.5W PC PIN 3296Z side adj cermet trimmer 5K 10% Trimmer;Cermet;Rest 5 Kilohms;PCB;Pwr-Rtg 0.5W;Dim 0.375inLx0.19inWx0.395inH Trimmer Resistors - Through Hole 3/8 5Kohms Sealed Horizontal Adjust TRIMMER, POT, 5KOHM, 10%, 25TURN, TH TRIMMER, POTENTIOMETER, 5KOHM 25TURN THRU HOLE Trimmer;Cermet;Rest5Kilohms;PCB;Pwr-Rtg0.5W;Dim0.375InLx0.19InWx0.395InH Potentiometer: mounting; multiturn; 5kΩ; 500mW; THT; ±10%; linear Trimmer Cermet 5 kOhm linear 500 mW, 3296Z-1-502LF, Bourns Bourns 3296Z 系列 25 转 通孔 微调电阻器, 带 焊针接端, 5kΩ ±10%, 0.5W, ±100ppm/°C
T93XB-5K-10-D06
VISHAY SFERNICE
