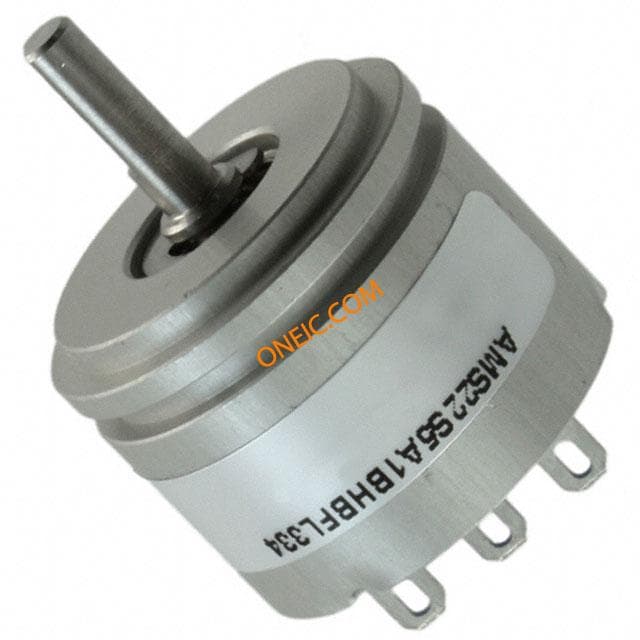

AMS22S5A1BHBFL334
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Industrial Motion & Position Sensors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85334010 | ||
Electrical
| Speed | :120rpm | Linearity | +/- 0.5 % |
| Tolerance | 10 % | Output Type | Analog |
| Voltage Rating | 5 V | Current - Supply | :20mA |
| Voltage - Supply | 4.5 V ~ 5.5 V | Number of Channels | :1 |
| Voltage - Supply (Vcc/Vdd) | :4.5V DC to 5.5V DC | ||
Mechanical
| Depth | 22.23mm | Length | 15.62mm |
| Weight | 0.536164 oz | Packaging | Bulk |
| Mounting Type | Servo Mount | Mounting Style | Chassis |
| Rotation Angle | :360° | Shaft Diameter | 2.67 mm |
| Actuator Material | * | Termination Style | * |
| Rotational Life (Cycles Min) | :50000000 | ||
Product Info
| Type | Hall Effect | Series | AMS22S |
| Function | * | Number of Turns | 1 |
| Type Attributes | Linear | RF Family/Standard | AMS22S |
Environmental
| Temperature Range | - 40 C to + 125 C | Operating Temperature | +125°C |
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- AMS22S.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
