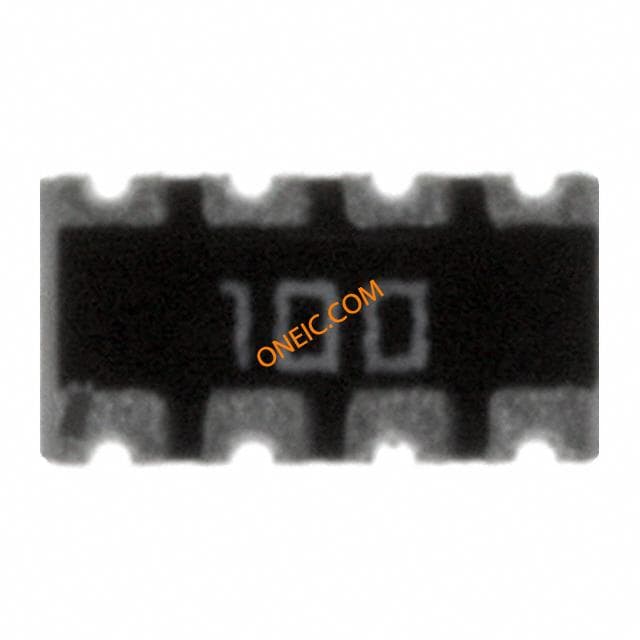

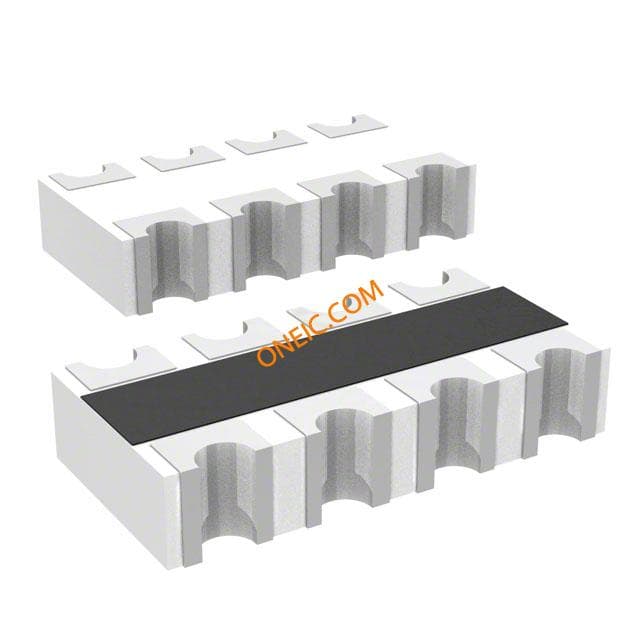

CAT16-100J4LF
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | CAT16-100J4LFCT | Product Category | Resistor Networks & Arrays |
| Standard Package | Tape & Reel | Factory Pack Quantity | 5000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85332100 |
| Rad Hardened | No | Military Standard | Not Required |
Electrical
| Circuit | IsolatedArray | Tolerance | 5% |
| Resistance | 10 Ohm | Power - Max | 0.062W |
| Element Type | :Isolated | Power - Rated | 0.25W |
| Voltage Rating | :50V | Circuit Pattern | ISOL |
| Resistor Values | 10 Ohms | Power Per Element | 62.5mW |
| Resistance (Ohms) | 10 | Number of Elements | :4 |
| Power - Peak Pulse | 1/16 W | Number of Resistors | 4 |
| Resistance Tolerance | :± 5% | ||
Mechanical
| Depth | 1.55mm | Width | 1.6 mm |
| Height | 0.024" (0.60mm) | Length | 3.2mm |
| Weight | 0.01 | Base Type | :1206 [3216 Metric] |
| Packaging | Paper Tape and Reel | Pitch - Post | 0.8 mm |
| Mounting Type | Surface Mount | Mounting Style | Surface Mount |
| Number of Pins | 8 | Package / Case | Molded |
| Package Cooled | SMD | Length - Overall | 3.2 mm |
| Size / Dimension | 0.126" L x 0.061" W (3.20mm x 1.55mm) | Termination Style | Concave |
| Number of Contacts | 8 | Resistive Material | :Thick Film |
| Number of Positions | 8 | Supplier Device Package | 1206 |
Product Info
| Type | Array | Series | CAT/CAY 16 |
| Technology | Thick Film | Circuit Type | Isolated |
| Failure Rate | Not Required | Manufacturer | CAT16Series |
| Product Type | Arrays | ||
Environmental
| Operating Temperature | -55 to 125 °C | Temperature Coefficient | 200 PPM / C |
Documents & Media
.jpg&w=3840&q=75)
Sourcing & traceability
- Datasheet
- CATCAY.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
