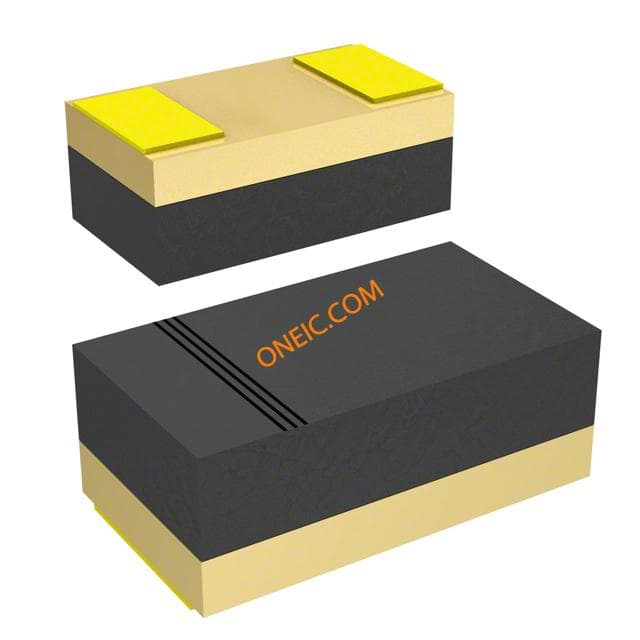

CD0603-S0180
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Diodes | Other Names | CD0603-S0180CT |
| Product Category | Diodes - General Purpose, Power, Switching | Standard Package | Tape & Reel |
| Factory Pack Quantity | 4000 | Standard Package Name | SMD |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Rad Hardened | No | ||
Electrical
| Speed | Small Signal = | Current - Test | 0.1@80V uA |
| Current - Surge | :1A | Voltage - Supply | 1 V |
| Current - Output 1 | :100mA | Capacitance @ Vr, F | 4pF @ 1V, 100MHz |
| Diode Configuration | :0603 | LED Forward Voltage | 1 |
| Voltage - Input (Min) | 1V @ 100mA | Power Dissipation (Max) | 150 |
| Voltage Regulation - Load | 90 V | Reverse Recovery Time (trr) | 4 ns |
| Current - Peak Pulse (8/20us) | 1 A | Current - Reverse Leakage @ Vr | 0.1 uA |
| Voltage - DC Reverse (Vr) (Max) | 80V | Current - Average Rectified (Io) | 0.1 A |
| Voltage - Reverse Standoff (Typ) | 90 V | Current - LED Trigger (Ift) (Max) | :100mA |
| Current - Continuous Drain (Id) @ 25degC | 0.1 A | ||
Mechanical
| Width | 1(Max) | Weight | 0.002 |
| Packaging | Tape and Reel | Lead Style | No Lead |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :2 |
| Package / Case | 2Case 0603 | Package Cooled | SMD |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 1.8(Max) |
| Package Quantity | Case 0603 | Number of Positions | 2 |
| Supplier Device Package | 0603 | ||
Product Info
| Type | Small Signal Switching Diode | DELETED | Compliant |
| Diode Type | Standard | Configuration | Single |
| Printed Circuit Board | 2 | ||
Environmental
| Operating Temperature | -40 to 125 °C | Operating Temperature - Junction | -40°C ~ 125°C |
Documents & Media
Similar Parts
.jpg&w=3840&q=75)
Sourcing & traceability
- Datasheet
- CD0603_1005.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
