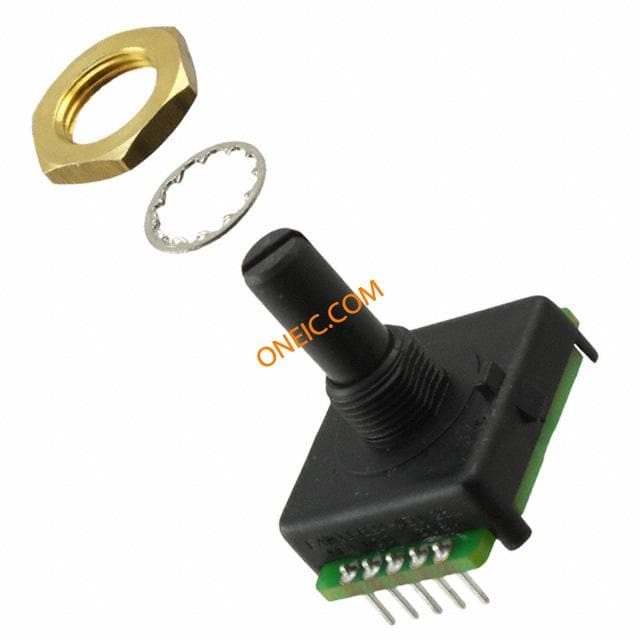

EAW0J-B24-AE0128L
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Mechanical Encoders | Other Names | EAW0JB24AE0128L |
| Product Category | Encoders | Standard Package | 45 |
| Factory Pack Quantity | 45 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85334010 |
| Rad Hardened | No | ||
Electrical
| Speed | 120r/min | Output | 8 bit Code |
| Resolution | 128 PPR | Output Type | Binary (Absolute) |
| Number of Bits | :128 | Voltage Rating | 10VDC |
| Current - Output | :10mA | Resolution (Bits) | :128CPR |
| Number of Channels | 8 Channel | Dielectric Strength | :1000V |
| Contact Rating (Current) | :10mA | Voltage - Supply (Vcc/Vdd) | :10V |
Mechanical
| Depth | 27.94 | Height | 27.56 |
| Weight | 0.014 | Packaging | Tray |
| Orientation | Vertical | Shaft Detail | Plain with Slot |
| Actuator Type | 1/4" Dia Slotted End | Mounting Type | Bracket Mount |
| Terminal Type | PC Pins | Bushing Thread | M9 x 0.75 |
| Mounting Style | Panel | Shaft Diameter | 6.35 mm |
| Actuation Force | Rotary | Length - Overall | 23.88 |
| Size / Dimension | 28 mm x 22 mm | Termination Style | PC Pin |
| Number of Positions | 0 | Bushing, Grommet Type | 9mm x 1/4" |
| Material - Insulation | Plastic | Mounting Hole Diameter | 9mm |
| Length - Shaft and Bearing | 3/4 in | Rotational Life (Cycles Min) | 50K |
| Torque - Max Momentary (oz-in / mNm) | 2.5oz.in | ||
Product Info
| Type | Contacting Encoder | Detent | No |
| Series | EAW | DELETED | Compliant |
| Technology | Rotary | Index Stops | Not Indexed |
| Encoder Type | Quadrature | Programmable | No |
| Built in Switch | No | Module/Board Type | No |
| Positions Per Level | Not Indexed | Other Specifications | No Switch |
| Pulses per Revolution | 128 | Leaded Process Compatible | :Yes |
Environmental
| Seal Rating | IP40 | Mechanical Life | 50000 |
| Shock Resistance | 50G | Operating Temperature | - 40 C to + 85 C |
| Operating Temperature - Junction | 85C | ||
