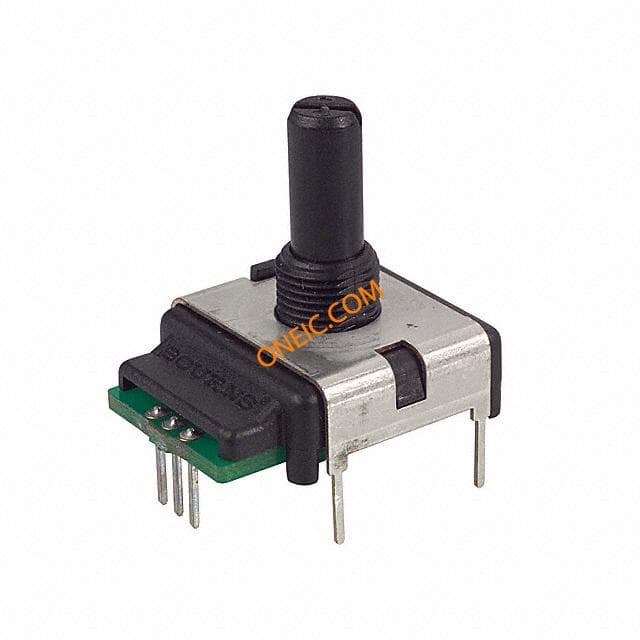

ECW1J-B24-AC0024L
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Mechanical Encoders | Other Names | ECW1JB24AC0024L |
| Product Category | Encoders | Standard Package | 45 |
| Factory Pack Quantity | 45 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Speed | 120r/min | Output | Quadrature |
| Resolution | 2 bit | Output Type | Quadrature (Incremental) |
| Output Signal | Quadrature | Voltage Rating | 10VDC |
| Number of Channels | 2 | Steps per Revolution | 24 |
Mechanical
| Depth | 28.49 | Width | 28.49mm |
| Height | 32.51 | Packaging | Bulk |
| Orientation | Vertical | Shaft Detail | Plain with Slot |
| Actuator Type | 1/4" Dia Slotted End | Mounting Type | Panel Mount |
| Terminal Type | PC Pins | Bushing Thread | M9 x 0.75 |
| Mounting Style | Panel | Shaft Diameter | 1/4 in |
| Actuation Force | Rotary | Depth - Overall | 22.2mm |
| Width - Overall | 28.49mm | Height - Overall | 27.51mm |
| Length - Overall | 22.2mm | Size / Dimension | 28.5 mm x 22 mm |
| Termination Style | PC Pin | Number of Positions | 24 |
| Bushing, Grommet Type | 9 mm x 1/4 in. | Height - Seated (Max) | 27.51mm |
| Material - Insulation | Plastic | Length - Shaft and Bearing | 3/4 in |
| Pulse Width Distortion (Max) | 24 | Rotational Life (Cycles Min) | 200K |
| Torque - Max Momentary (oz-in / mNm) | 2.25oz.in | ||
Product Info
| Type | Contacting Encoder | Detent | Yes |
| Series | ECW | Technology | Incremental |
| Index Stops | Not Indexed | Encoder Type | Quadrature |
| Programmable | No | Built in Switch | No |
| Module/Board Type | No | Other Specifications | No Switch |
| Pulses per Revolution | 96 | ||
Environmental
| Seal Rating | IP40 | Mechanical Life | 200000 |
| Shock Resistance | 50G | Ingress Protection | IP40 |
| Operating Temperature | +85°C | ||
