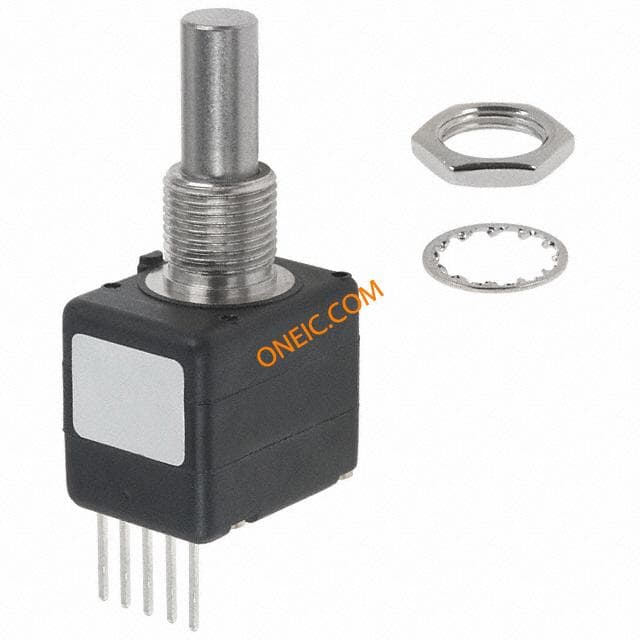

ENA1J-B28-L00100L
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Optical Encoders | Product Category | Encoders |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85334010 | ||
Electrical
| Speed | :300rpm | Output | Quadrature |
| Resolution | 2 bit | Output Type | Quadrature (Incremental) |
| Output Signal | Quadrature | Voltage - Supply | 5VDC |
| Resolution (Bits) | :100 | Number of Channels | 2 Channel |
Mechanical
| Weight | 0.0129 | Packaging | Bulk |
| Orientation | Vertical | Shaft Detail | End |
| Actuator Type | 1/4" Dia Round End | Mounting Type | Panel, PCB Through Hole |
| Shaft Diameter | 1/4 in | Depth - Overall | 15.88mm |
| Material Finish | :- | Width - Overall | 21.21mm |
| Height - Overall | 47.05mm | Termination Style | PC Pin |
| Rotational Life (Cycles Min) | 10M | ||
Product Info
| Type | Optical | Detent | No |
| Series | EN | Technology | Optical |
| Encoder Type | Optical | Built in Switch | No |
| Other Specifications | Yes | Pulses per Revolution | 100 |
Environmental
| Seal Rating | IP40 | Operating Temperature | +75°C |
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- 1695369.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
