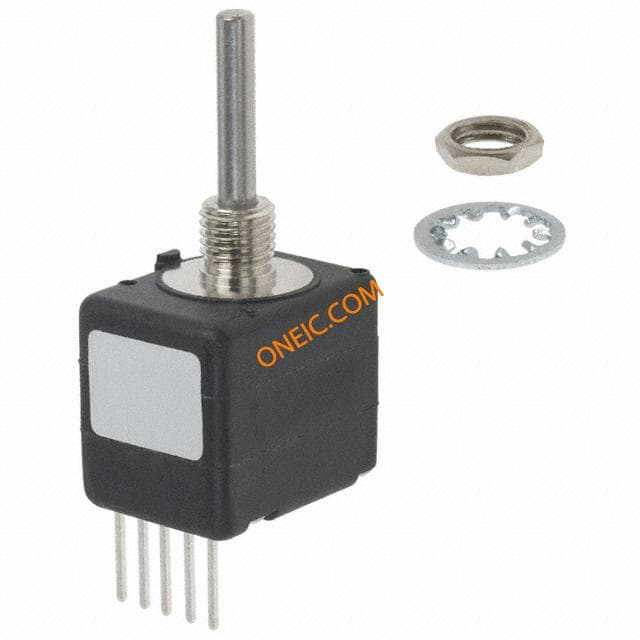

ENC1J-D28-L00128L

点击放大查看

对参数有疑问?问 AI 助手

Business

ProductOptical EncodersProduct CategoryEncoders
Standard Package1Factory Pack Quantity1

Compliance

RoHSLead free / RoHS CompliantEU RoHSCompliant

Electrical

Speed300r/minOutputQuadrature
Channels2Resolution2 bit
Output TypeQuadrature (Incremental)Output SignalQuadrature
Voltage Rating4.75VVoltage - Supply5VDC
Number of Channels2Steps per Revolution128
Voltage - Supply (Min)5.25V

Mechanical

Depth15.88Width21.21mm
Height47.08PackagingBulk
OrientationVerticalShaft DetailPlain
Actuator Type1/8" Dia Round EndMounting TypeBracket Mount
Terminal TypePC PinsShaft Diameter1/8 in
Actuation ForceRotaryDepth - Overall15.88mm
Width - Overall21.21mmHeight - Overall47.05mm
Length - Overall15.88mmTermination StylePC Pin
Bushing, Grommet Type末端Height - Seated (Max)47.05mm
Rotational Life (Cycles Min)10MTorque - Max Momentary (oz-in / mNm)1.5oz.in

Product Info

DetentNoSeriesEN
TechnologyOpticalHandle Typeø 3.18 mm
Index StopsNot IndexedEncoder TypeDigital Square Wave
ProgrammableNoBuilt in SwitchNo
Module/Board TypeNoOther SpecificationsYes
Pulses per Revolution512

Environmental

Seal RatingIP40Mechanical Life10000000
Shock Resistance50GIngress ProtectionIP40
Operating Temperature+75°C
