点击放大查看

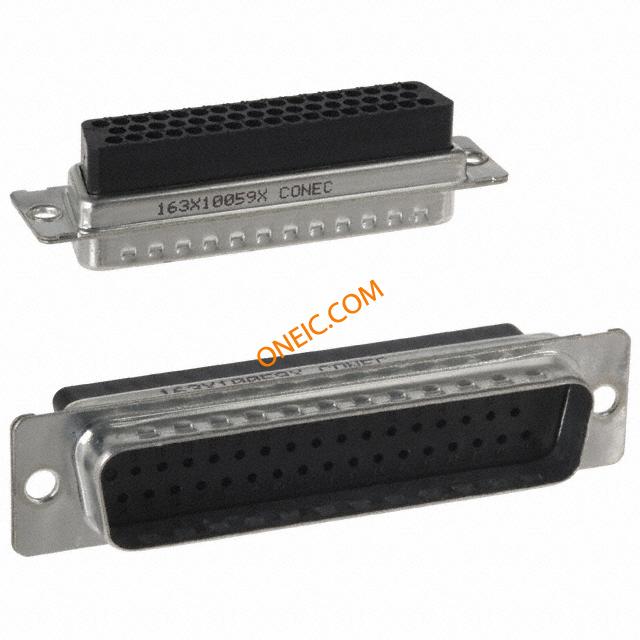

163X10059X
| Manufacturer | |
| Description | D-Sub Standard Connectors 50 POS CRIMP MALE Conn Housing PL 50 POS Crimp ST Panel Mount CONN DSUB 50POS PLUG CRIMP |
| Category |
商业参数
| 其他名称 | 626-1067 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 颜色 | Black | 高度 | 15.75 |
| 包装方式 | Tray | 导线线规 | 20-28 |
| 触头类型 | Signal | 安装类型 | Straight |
| 外壳镀层 | Tin | 连接器类型 | Plug for Male Contacts |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 壳体材料 | Steel |
| 总长度 | 67.31 | 端接样式 | Crimp |
| 触点数 | 50 | 介电材料 | Polybutylene Terephthalate (PBT), Glass Filled |
| 位数 | 50 | 外壳镀层厚度 | 315µin (8.00µm) |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 5 (DD, D) |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | Male | 产品特性 | Grounding Indents |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
