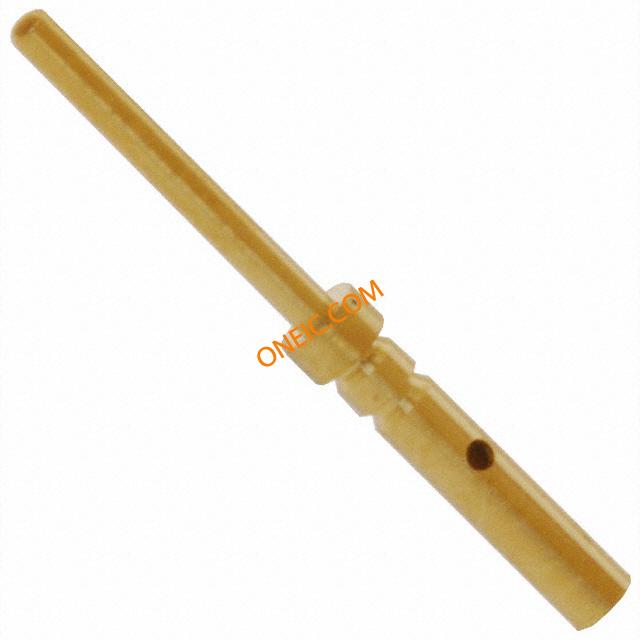

161A18299X
| Manufacturer | |
| Description | D-Sub Contacts CRIMP CONTACT MALE 20-24 AWG Contact PIN Crimp ST Cable Mount CONN DSUB PIN 20-24AWG GOLD |
| Category |
商业参数
| 其他名称 | 626-1073 | 产品类别 | D-Sub Contacts |
| 标准包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 最大额定电流 | 7.5 A | 连接器类型 - 电压输入 | Crimp |
机械参数
| 深度 | 2.11 | 间距 | Not Required mm |
| 高度 | 2.11 | 包装方式 | Tray |
| 导线线规 | 24-20 | 屏蔽类型 | No |
| 端接方式 | Crimp | 触点形式 | Machined |
| 触头类型 | Stamped / Formed Contacts | 触点形状 | Machined |
| 安装类型 | Cable Mount | 连接器类型 | Connector D-Subminiature |
| 接触镀层 | Gold | 安装样式 | Cable |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 14.8 | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | Flash |
产品信息
| 类型 | Signal | 连接器性别 | PIN |
| 系列 | 161A | 已删除 | Compliant |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | -55C to 125C | ||
Documents & Media
相关型号
163X10019X
CONEC
D-Sub Standard Connectors 9 POS CRIMP MALE Conn Housing PL 9 POS Crimp ST Panel Mount CONN DSUB 9POS PLUG CRIMP
163X10049X
CONEC
D-Sub Standard Connectors 37 POS CRIMP MALE Conn Housing PL 37 POS Crimp ST Panel Mount CONN DSUB 37POS PLUG CRIMP
163X10029X
CONEC
D-Sub Standard Connectors 15 POS CRIMP MALE Conn Housing PL 15 POS Crimp ST Panel Mount CONN DSUB 15POS PLUG CRIMP
163X10059X
CONEC
D-Sub Standard Connectors 50 POS CRIMP MALE Conn Housing PL 50 POS Crimp ST Panel Mount CONN DSUB 50POS PLUG CRIMP
163X10039X
CONEC
D-Sub Standard Connectors 25 POS CRIMP MALE Conn Housing PL 25 POS Crimp ST Panel Mount CONN DSUB 25POS PLUG CRIMP
DSS3XPXXG04X
CONEC
D-Sub Standard Connectors DSUB CRIMP BODY WR SZ AWG24-20,28-24 25P M CRIMP BODY 4-40 INSERTS

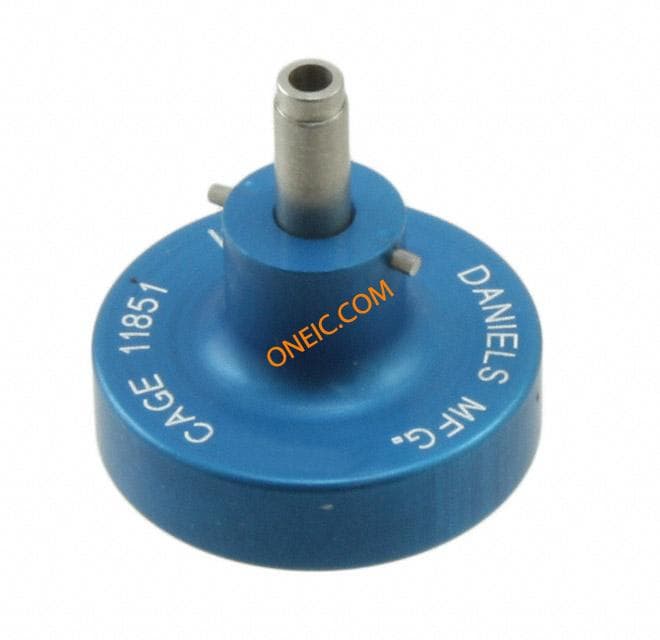

360X20069X
