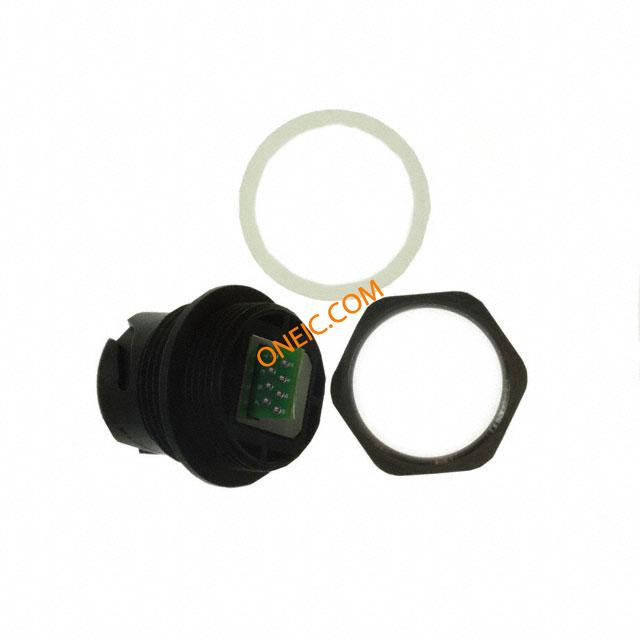

点击放大查看
17-10017
| Manufacturer | |
| Description | Conn RJ-45 F 8 POS Solder ST Panel Mount 8 Terminal 1 Port Cat 5e CONN MOD JACK 8P8C SHIELDED |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数

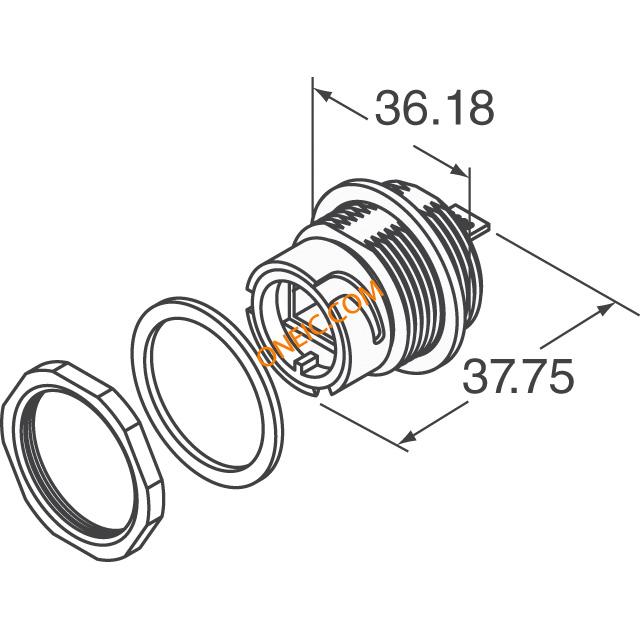

| 深度 | 37.75 | 高度 | 34 |
| LED颜色 | Does Not Contain LED | 包装方式 | Bulk |
| 屏蔽 | Shielded | 方向 | Straight |
| 端接方式 | Solder | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 卡扣方向（或“接线片方向”） | User Selectable |
| 连接器类型 | Jack | 接触镀层 | Gold |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Plastic | 总长度 | 36.18 |
| 触点数 | 8 | 接触镀层厚度 | 50µin (1.27µm) |
产品信息
| 类型 | RJ-45 | 连接器性别 | F |
| 产品特性 | Circular Bayonet Coupling | 类别编号 | Cat 5e |
| 端口数 | 1 | 加载位置数 | 8 |
| 位置/触点数量 | 8p8c (RJ45, Ethernet) | ||
环境参数
| 额定等级 | Cat5e | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 85°C | ||
