点击放大查看

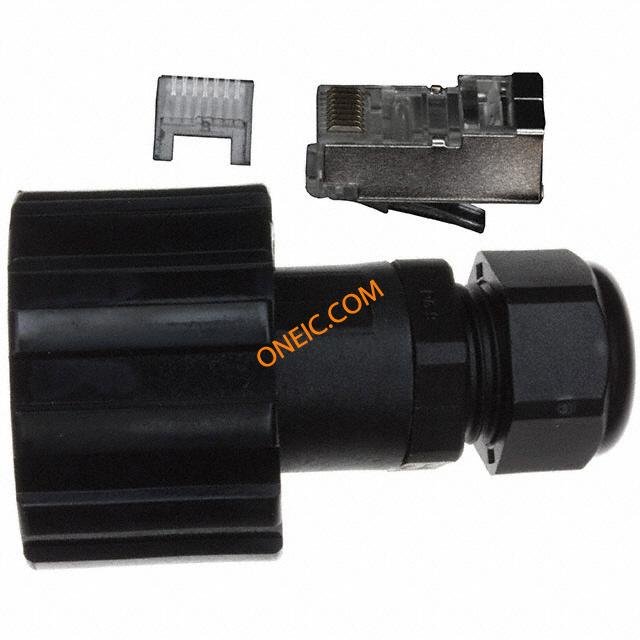

17-100464
| Manufacturer | |
| Description | CONN MOD PLUG 8P8C SHIELDED Modular Connectors / Ethernet Connectors RJ45 PL PLASTIC IP67 W/STRAIN RELIEF KIT |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 100V | 最大额定电流 | 1.2A |
机械参数

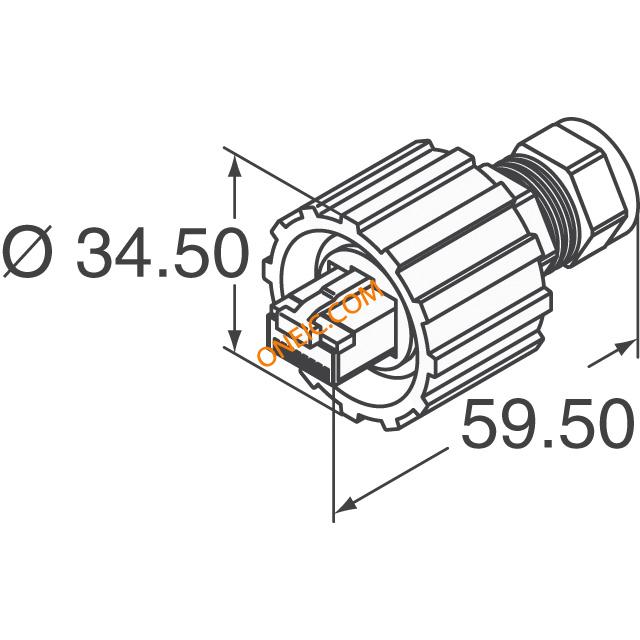

| 颜色 | Translucent - Clear | 长度 | 2.343" (59.50mm) |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 电缆类型 | Round Cable, Solid or Stranded Wires | 导线线规 | 24 AWG |
| 端接方式 | IDC | 安装类型 | Straight |
| 接触镀层 | Gold | 安装样式 | Cable |
| 屏蔽材料 | Copper Alloy | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polycarbonate (PC) | 接触镀层厚度 | 50µin (1.27µm) |
产品信息
| 类型 | RJ45 Cable Strain Relief Kit | 连接器性别 | Male |
| 产品特性 | Circular Threaded Coupling | USOC 编码 | RJ45 |
| 端口数 | 1 | 性能类别 | Cat 5e |
| 位置/触点数量 | 8p8c (RJ45, Ethernet) | ||
环境参数
| 额定等级 | Cat5e | 密封等级 | IP 67 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | - 40 C to + 85 C |
