17-10033
| Manufacturer | |
| Description | Conn Housing F ST Panel Mount CONN MOD JACK 8P8C SHIELDED Modular Connectors / Ethernet Connectors RJ45 Cat 5e Female |
| Category |
商业参数
| 其他名称 | 626-1390 | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 100 V | 最大额定电流 | 1.2 A |
机械参数
| 颜色 | Black | 深度 | 36.18 |
| LED颜色 | Does Not Contain LED | 包装方式 | Bulk |
| 屏蔽 | Shielded | 方向 | Straight |
| 端接方式 | IDC, Color Coded Block | 外壳颜色 | Black |
| 安装类型 | Straight | 卡扣方向（或“接线片方向”） | User Selectable |
| 连接器类型 | Jack | 接触镀层 | Gold |
| 安装样式 | Panel | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Plastic |
| 总长度 | 45.95 | 接触镀层厚度 | 50µin (1.27µm) |
产品信息
| 类型 | Housing | 连接器性别 | F |
| 产品特性 | Circular Bayonet Coupling, Potted | USOC 编码 | RJ45 |
| 端口数 | 1 | 性能类别 | Cat 5e |
| 位置/触点数量 | 8p8c (RJ45, Ethernet) | ||
环境参数
| 额定等级 | Cat5e | 密封等级 | IP 67 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
相关型号

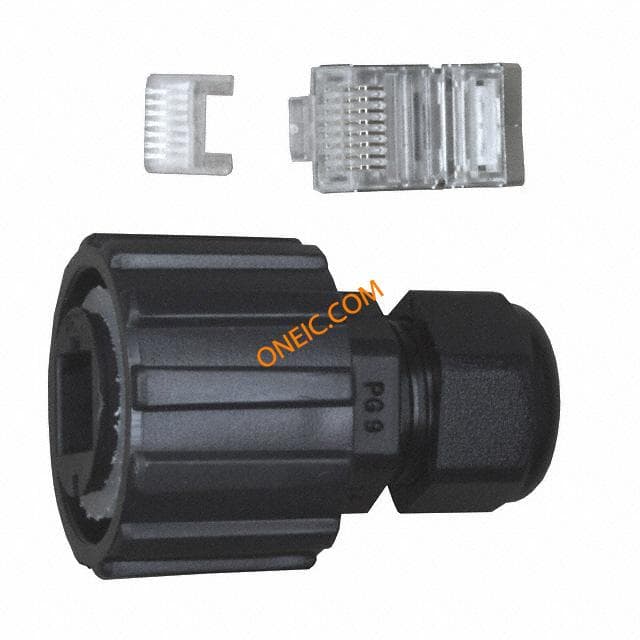

17-10001
CONEC
Conn RJ-45 PL 8 POS ST 8 Terminal 1 Port Cat 5e CONN MOD PLUG 8P8C SHIELDED Modular Connectors / Ethernet Connectors RJ45 PLUG KIT PLASTIC Plug; RJ45; PIN:8; Cat:5e; shielded; Pin layout:8p8c; 24AWG; IP67
17-100514
CONEC
RJ45 PATCH CORD PLASTIC DESIGN-BAYONET PLUG CONNECTOR CABLE RJ45 2M IND PLUG-PLUG Ethernet Cables / Networking Cables RJ45 Cat 5e Male
17-10025
CONEC
RJ45 PATCH CORD PLASTIC DESIGN-BAYONET PLUG CONNECTOR CABLE RJ45 2M IND PLUG-PLUG Ethernet Cables / Networking Cables RJ45 Cat 5e Male
17-101204
CONEC
RJ45 PATCH CORD PLASTIC DESIGN-BAYONET PLUG CONNECTOR CABLE RJ45 2M IND PLUG-PLUG Modular Connectors / Ethernet Connectors RJ45 Cat 5e Male

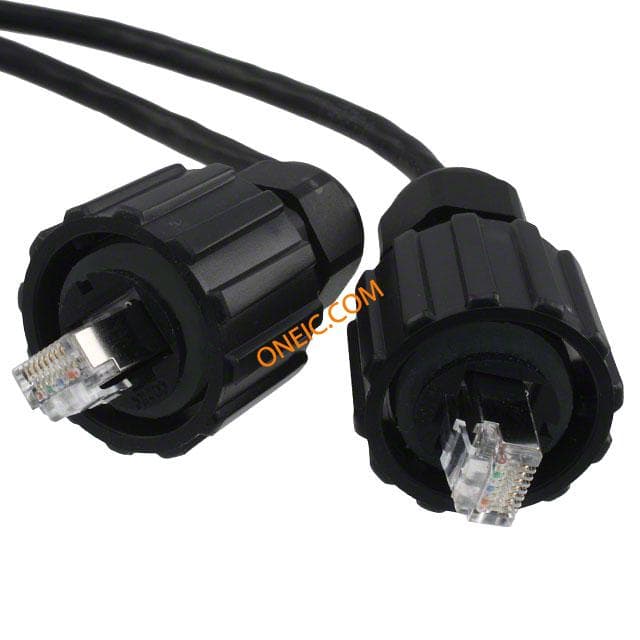

17-10003
CONEC
RJ45 PATCH CORD PLASTIC DESIGN-BAYONET PLUG CONNECTOR CABLE RJ45 2M IND PLUG-PLUG Ethernet Cables / Networking Cables RJ45 Cat 5e Male
17-101144
CONEC
RJ45 PATCH CORD PLASTIC DESIGN-BAYONET PLUG CONNECTOR CABLE RJ45 2M IND PLUG-PLUG Ethernet Cables / Networking Cables RJ45 Cat 5e Male
17-10002
CONEC
Connector Accessories Protection Cap CONN ACCY CAP BLACK Modular Connectors / Ethernet Connectors RJ45 COVER ASSY PLASTIC IP67 Protection cover; Locking: bayonet; IP67
17-101174
Conec
CABLE RJ45 2M IND PLUG-PLUG Modular Connectors / Ethernet Connectors RJ45 Cat 5e Male

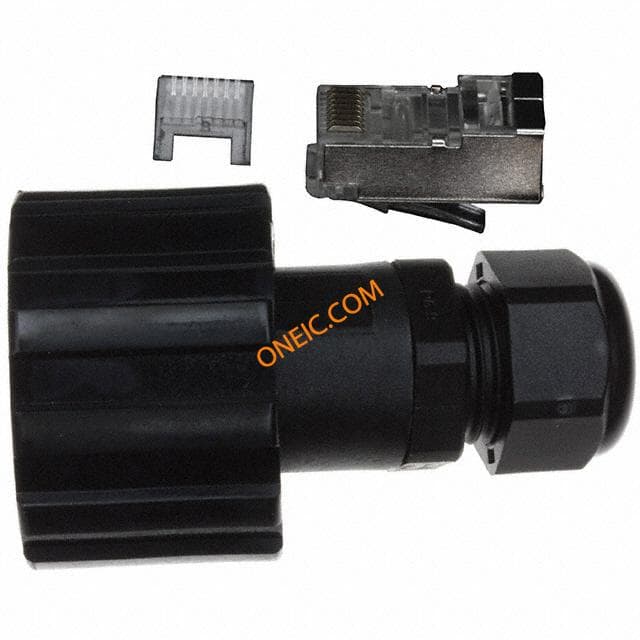

17-100464
