点击放大查看

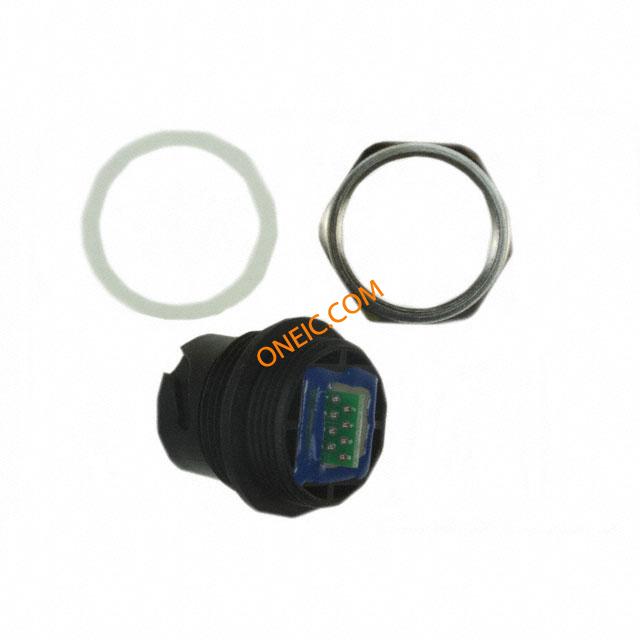

17-10035
| Manufacturer | |
| Description | Conn RJ-45 F 8 POS Solder ST Panel Mount 8 Terminal 1 Port Cat 5e CONN MOD JACK 8P8C SHIELDED Modular Connectors / Ethernet Connectors FULLY POTTED RJ45 SHLD CAT5e RECPT. |
| Category |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 100 V | 最大额定电流 | 1.2 A |
机械参数
| 颜色 | Black | 深度 | 37.75 |
| 高度 | 34 | LED颜色 | Does Not Contain LED |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 方向 | Straight | 端接方式 | Solder |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 卡扣方向（或“接线片方向”） | User Selectable | 连接器类型 | Jack |
| 接触镀层 | Gold | 安装样式 | Panel |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Plastic | 总长度 | 36.18 |
| 触点数 | 8 | 接触镀层厚度 | 50µin (1.27µm) |
产品信息
| 类型 | RJ-45 | 连接器性别 | F |
| 产品特性 | Circular Bayonet Coupling, Potted | USOC 编码 | RJ45 |
| 类别编号 | Cat 5e | 端口数 | 1 |
| 性能类别 | Cat 5e | 加载位置数 | 8 |
| 位置/触点数量 | 8p8c (RJ45, Ethernet) | ||
环境参数
| 额定等级 | Cat5e | 密封等级 | IP 67 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
