17-101754
| Manufacturer | |
| Description | JACK RECEPTACLE ASSEMBLY KITWITH CAT. 5E RJ45 INLINE COUPLERNICKEL PLATED ZINC DIE-CAST VERSION COUPLER MODULAR 8POS-8POS Modular Connectors / Ethernet Connectors Coupler Shielded |
| Category |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 100 V | 最大额定电流 | 1.2 A |
机械参数
| 屏蔽 | Shielded | 安装类型 | Panel Mount, Bulkhead |
| 接触镀层 | Gold | 安装样式 | Panel |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polybutylene Terephthalate (PBT), Glass Filled |
| 安装特性 | Front Side Nut | 外壳材料及表面处理 | Copper Alloy, Nickel Plated |
| 接触镀层厚度 | 50µin (1.27µm) | ||
产品信息
| 类型 | Coupler | 连接器性别 | Female |
| 产品特性 | Circular Bayonet Coupling | USOC 编码 | RJ45 |
| 端口数 | 1 | 性能类别 | Cat 5e |
| 转换端（适配器端） | Jack, 8p8c (RJ45) | 转换自（适配器端） | Jack, 8p8c (RJ45) |
环境参数
| 额定等级 | Cat5e | 密封等级 | IP 67 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
Documents & Media
相关型号
17-101794
CONEC
Modular Connectors / Ethernet Connectors RJ45 Cat 5e Male Conn RJ-45 PL 8 POS IDT ST Cable Mount 8 Terminal 1 Port Cat 5e CONN MOD PLUG 8P8C SHIELDED

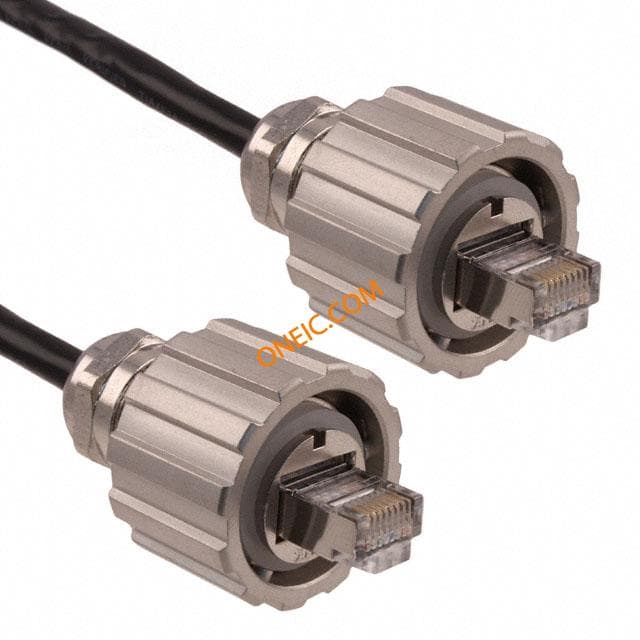

17-100514
CONEC
RJ45 PATCH CORD PLASTIC DESIGN-BAYONET PLUG CONNECTOR CABLE RJ45 2M IND PLUG-PLUG Ethernet Cables / Networking Cables RJ45 Cat 5e Male

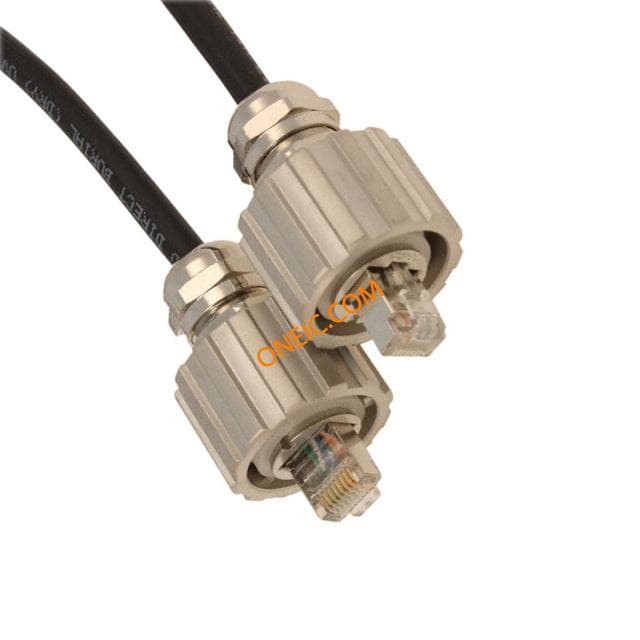

17-101204
CONEC
RJ45 PATCH CORD PLASTIC DESIGN-BAYONET PLUG CONNECTOR CABLE RJ45 2M IND PLUG-PLUG Modular Connectors / Ethernet Connectors RJ45 Cat 5e Male

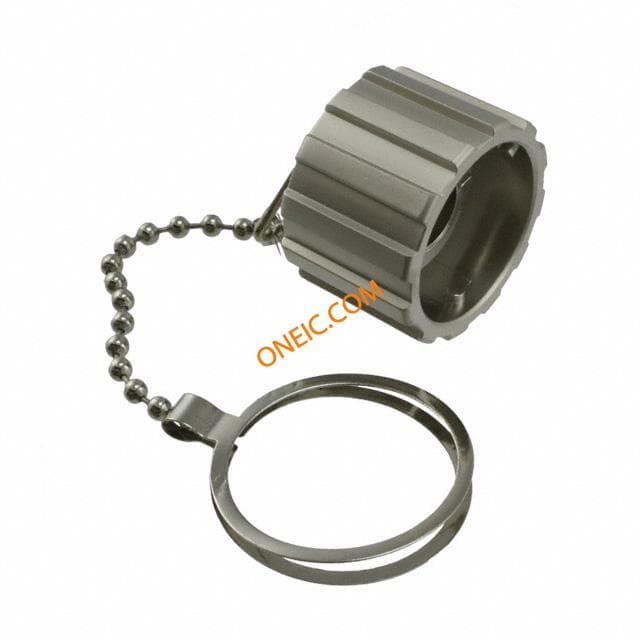

17-101800
CONEC
PROTECTIVE COVER ASSEMBLY KITWITH METAL BALL CHAINNICKEL PLATED ZINC DIE-CAST VERSION CONN COVER USB ZINC IP67 Modular Connectors / Ethernet Connectors Protective Cover Assembly Kit

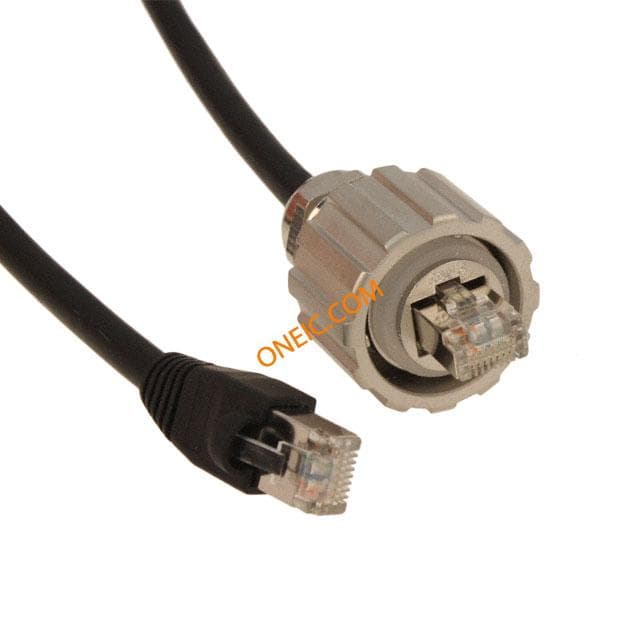

17-101294
CONEC
RJ45 PATCH CORD IP67 TO IP20 - PLASTIC DESIGN - BAYONET PLUG CONNECTOR CABLE RJ45 2M IND PLUG-STD Ethernet Cables / Networking Cables RJ45 Cat 5e Male

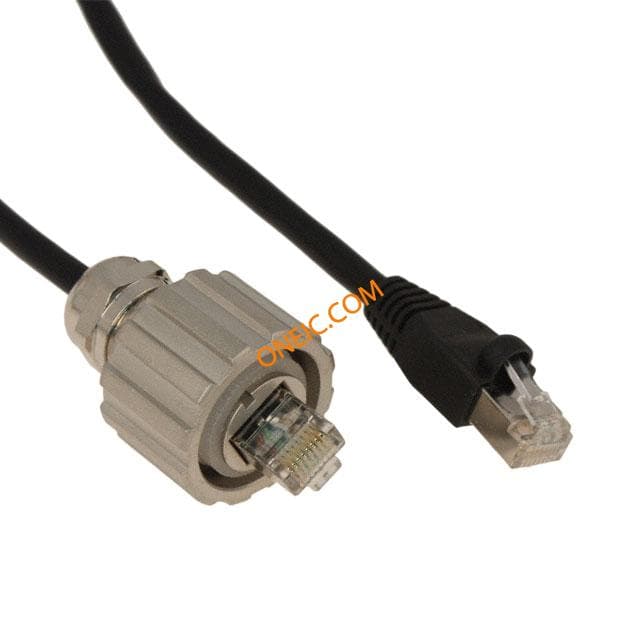

17-100544
