点击放大查看

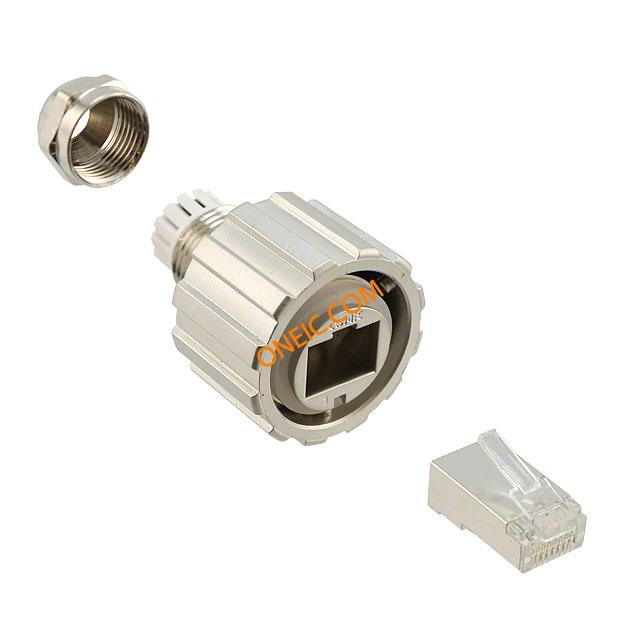

17-101794
| Manufacturer | |
| Description | Modular Connectors / Ethernet Connectors RJ45 Cat 5e Male Conn RJ-45 PL 8 POS IDT ST Cable Mount 8 Terminal 1 Port Cat 5e CONN MOD PLUG 8P8C SHIELDED |
| Category |
商业参数
| 产品 | Telecom & Ethernet Connectors | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 100 V | 接触电阻 | 20 |
| 最大额定电流 | 1.2 A | 最小输入电压 | 100VDC |
机械参数
| 颜色 | Translucent - Clear | 深度 | 31.5 |
| 高度 | 31.5 | 长度 | 2.323" (59.00mm) |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 电缆类型 | Round Cable, Solid or Stranded Wires | 端接方式 | IDT |
| 外壳颜色 | Clear | 安装类型 | Cable Mount |
| 接触镀层 | Gold | 安装样式 | Cable |
| 屏蔽材料 | Copper Alloy | 触头材料 | Phosphor Bronze |
| 壳体材料 | Zinc | 总长度 | 59.02 |
| 触点数 | 8 | 接触镀层厚度 | 50µin (1.27µm) |
产品信息
| 类型 | RJ-45 | 连接器性别 | Male |
| 产品特性 | Circular Bayonet Coupling | USOC 编码 | RJ45 |
| 类别编号 | Cat 5e | 端口数 | 1 |
| 性能类别 | Cat 5e | 加载位置数 | 8 |
| 位置/触点数量 | 8p8c (RJ45, Ethernet) | ||
环境参数
| 额定等级 | Cat5e | 密封等级 | IP 67 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | - 40 C to + 85 C |
Documents & Media
相关型号
17-101814
CONEC
Modular Connectors / Ethernet Connectors Coupler Shielded w/cap JACK RECEPTACLE & COVER KITWITH CAT. 5E RJ45 INLINE COUPLERNICKEL PLATED ZINC DIE-CAST VERSION COUPLER MODULAR 8POS-8POS
17-101754
CONEC
JACK RECEPTACLE ASSEMBLY KITWITH CAT. 5E RJ45 INLINE COUPLERNICKEL PLATED ZINC DIE-CAST VERSION COUPLER MODULAR 8POS-8POS Modular Connectors / Ethernet Connectors Coupler Shielded

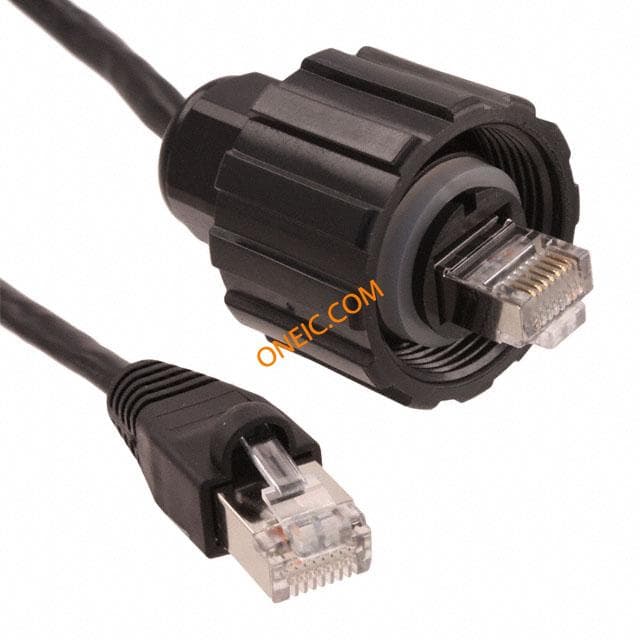

17-100574
