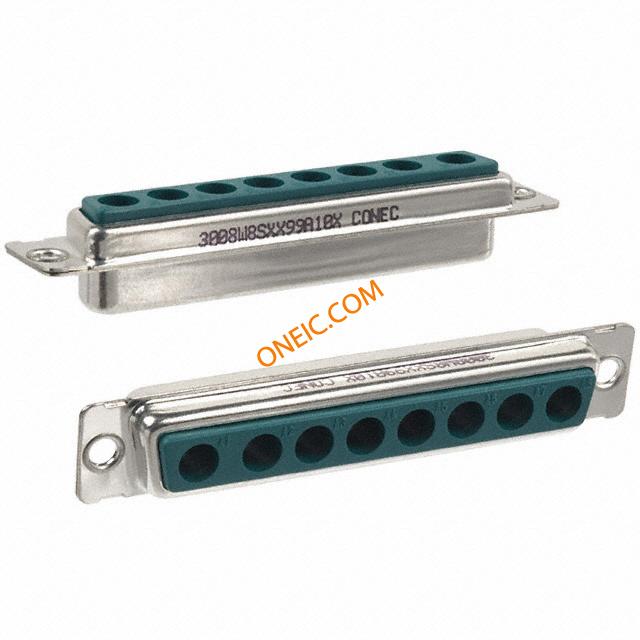

3008W8SXX99A10X
| Manufacturer | |
| Description | D-Sub Mixed Contact Connectors 8W8 FEMALE Conn Housing SKT 8 POS ST Panel Mount CONN DSUB COMBO 8POS 8W8 SOCKET |
| Category |
商业参数
| 其他名称 | 626-1109 | 产品类别 | D-Sub Mixed Contact Connectors |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 颜色 | Green | 深度 | 12.45 |
| 高度 | 12.93 | 包装方式 | Tray |
| 外壳尺寸 | 4 | 触头类型 | Coax or Power |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 连接器类型 | Receptacle for Female Contacts | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Panel | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub, Combo |
| 壳体材料 | Steel | 总长度 | 69.7 |
| 端接样式 | Crimp | 触点数 | 8 |
| 介电材料 | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | 位数 | 8 (Coax or Power) |
| 外壳镀层厚度 | 320µin (8.13µm) | 外壳材料及表面处理 | Steel, Tin Plated |
| 典型触点布局 | 8W8S | 外壳尺寸，连接器布局 | 4 (DC, C) - 8W8 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | Female | 系列 | 300 |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
