点击放大查看

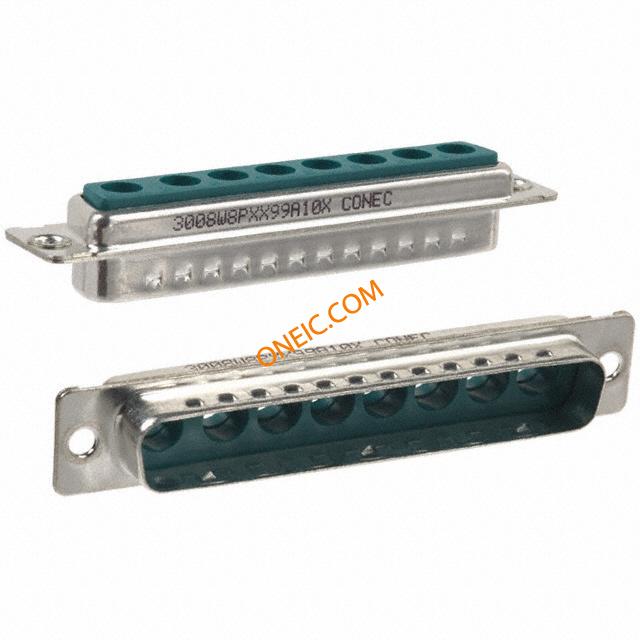

3008W8PXX99A10X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Mixed Contact Connectors 8W8 MALE Conn Housing PL 8 POS Crimp ST Cable Mount CONN DSUB COMBO 8POS 8W8 PLUG
Category	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1110	产品类别	D-Sub Mixed Contact Connectors
标准包装数量	10

合规参数

RoHS

RoHS Compliant

欧盟RoHS

Compliant

机械参数

颜色	Green	深度	11.24
高度	12.93	包装方式	Tray
外壳尺寸	4	触头类型	Coax or Power
外壳颜色	Green	安装类型	Straight
外壳镀层	Tin	连接器类型	Plug for Male Contacts
法兰特征	Housing/Shell (Unthreaded)	安装样式	Panel
排数	2	外壳材料（壳体）	Steel
连接器样式	D-Sub, Combo	壳体材料	Polybutylene Terephthalate
总长度	69.7	端接样式	Crimp
触点数	8	介电材料	Polybutylene Terephthalate (PBT), Glass Filled
位数	8 (Coax or Power)	外壳镀层厚度	315µin (8.00µm)
外壳材料及表面处理	Steel, Tin Plated	典型触点布局	8W8P
外壳尺寸，连接器布局	4 (DC, C) - 8W8

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	Male	系列	300
产品特性	Grounding Indents

环境参数

工作温度

-55°C ~ 125°C

Documents & Media

PDF Document

5bca6875eeda558e4ba5a078bbac2e50_025.pdfdbl.pdf

PDF Document

Comb D-SUB Conn Tech Data

PDF Document

Comb D-SUB Connectors

PDF Document

Comb D-SUB without Contacts
