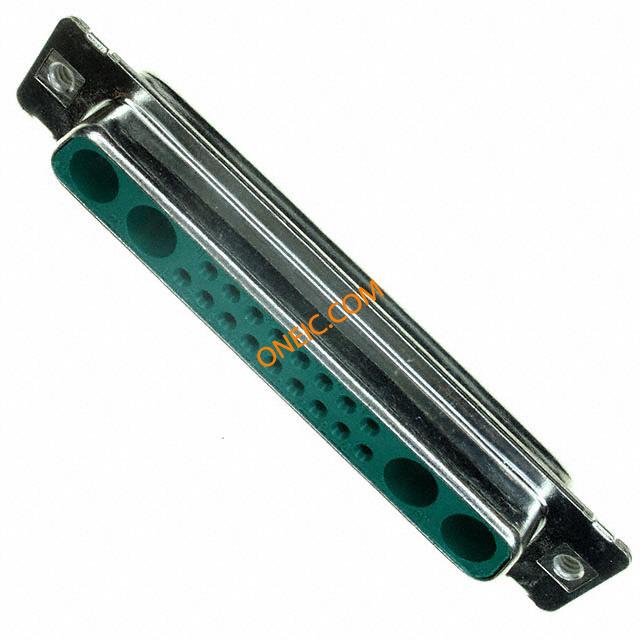

321WA4SCM99A30X
| Manufacturer | |
| Description | D-Sub Mixed Contact Connectors 21WA4 SOLDER CUP FEMALE CONN DSUB COMBO 21POS 21WA4 SCKT |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | 626-1135 | 产品类别 | D-Sub Mixed Contact Connectors |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 5A |
机械参数
| 颜色 | Green | 包装方式 | Tray |
| 外壳尺寸 | 4 | 端接方式 | Solder Cup |
| 触头类型 | Coax or Power (Not Included) and Signal | 安装类型 | Straight |
| 外壳镀层 | Tin | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (4-40) |
| 安装样式 | Panel | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub, Combo |
| 触头材料 | Copper Alloy | 壳体材料 | Polybutylene Terephthalate (PBT), Glass Filled |
| 端接样式 | Solder | 触点数 | 21 |
| 位数 | 21 (17 + 4 Coax or Power) | 外壳材料及表面处理 | Steel, Tin Plated |
| 典型触点布局 | 21WA4 | 接触镀层厚度 | 30µin (0.76µm) |
| 外壳尺寸，连接器布局 | 4 (DC, C) - 21WA4 | ||
产品信息
| 连接器性别 | Female | 系列 | 300 |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
