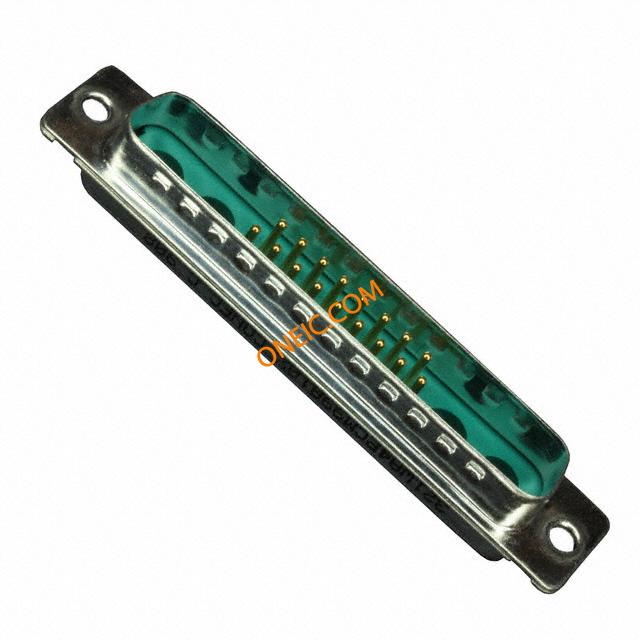

321WA4PCM99A10X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Mixed Contact Connectors 21WA4 SOLDER CUP MALE Conn D-Subminiature M 17Signal/4Cavity POS Solder Cup ST Panel Mount 17 Terminal 1 Port CONN DSUB COMBO 21POS 21WA4 PLUG
Category	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1134	产品类别	D-Sub Mixed Contact Connectors
标准包装数量	10

合规参数

RoHS	RoHS Compliant	欧盟RoHS	Compliant
抗辐射加固	No

电气参数

额定电压

250V

最大额定电流

机械参数

颜色	Green	深度	14.39 mm
高度	12.93 mm	包装方式	Tray
外壳尺寸	4	端接方式	Solder Cup
触头类型	Coax or Power (Not Included) and Signal	安装类型	Straight
外壳镀层	Tin	连接器类型	Plug, Male Pins
接触镀层	Gold Over Nickel	法兰特征	Housing/Shell (Unthreaded)
安装样式	Panel	排数	2
外壳材料（壳体）	Steel	连接器样式	D-Sub, Combo
触头材料	Copper Alloy	壳体材料	Polybutylene Terephthalate
总长度	69.7 mm	端接样式	Solder
第一触头极性	M	触点数	17Signal/4Cavity
位数	21 (17 + 4 Coax or Power)	外壳材料及表面处理	Steel, Tin Plated
典型触点布局	21WA4	接触镀层厚度	30µin (0.76µm)
外壳尺寸，连接器布局	4 (DC, C) - 21WA4

产品信息

类型	D-Subminiature	连接器性别	Male
系列	300	产品特性	Grounding Indents
端口数	1

环境参数

工作温度

-55°C ~ 125°C

Documents & Media

PDF Document

13K1IM2A.pdf

PDF Document

Combination D-SUB Spec

PDF Document

321WA4PCM99A10X

相关型号

131C11019X

CONEC

D-Sub Contacts HIGH POWER CONTACT 10A CRIMP MALE Contact PIN Crimp ST Cable Mount CONN PIN COMBO-D 16-20AWG CRIMP

¥9.9756

详情

131J20019X

CONEC

D-Sub Contacts COAX CONTACT MALE FOR 178 196 404 CONN PLUG COMBO-D COAX 50 OHM

¥31.3480

详情

131C11029X

CONEC

D-Sub Contacts HIGH POWER CONTACT 20A CRIMP MALE Contact PIN Crimp ST Cable Mount CONN PIN COMBO-D 12-14AWG CRIMP

¥8.9080

详情

131J20029X

CONEC

D-Sub Contacts COAX CONTACT MALE FOR 174 188 316 CONN PLUG COMBO-D COAX 50 OHM

¥26.7920

详情

131C10019X

CONEC

D-Sub Contacts HIGH POWER CONTACT 10A SOLDER CUP MALE Contact PIN Solder Cup ST Cable Mount CONN PIN COMBO-D 16-20AWG SOLDER Contact; male; 16÷20AWG; gold plated; soldering; for cable; 10A

¥13.9884

详情

165X13449XE

CONEC

D-Sub Backshells BLK SHELL SIZE 4 ANGLED FOR COMBO Connector Accessories D-SUB Plastic Hood 37 POS Polybutylene Terephthalate Black With Side Cable Exit Big Space Inside CONN BACKSHELL DB37 90DEG BLACK Connector Accessories D-SUB Plastic Hood 37 POS Polybutylene Terephthalate Black With Side Cable Exit Big Spac

¥35.6320

详情

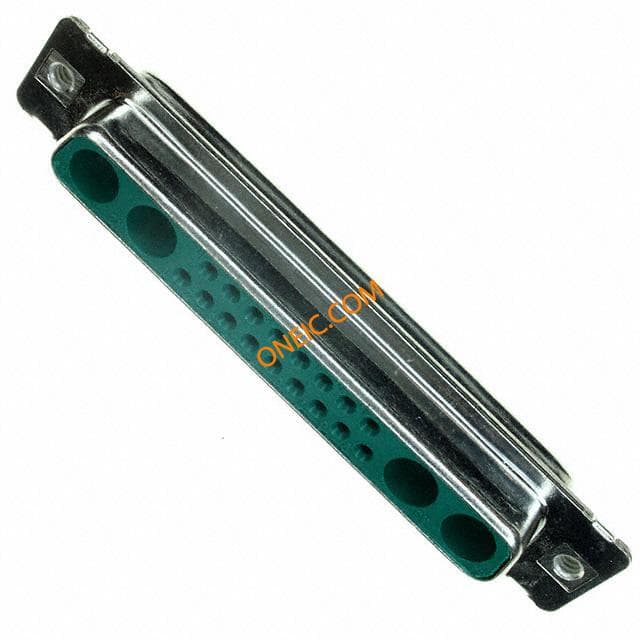

321WA4SCM99A30X
