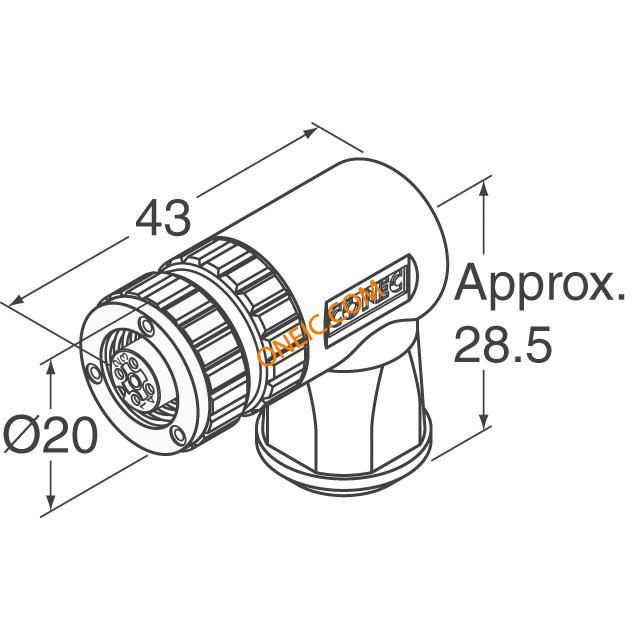

43-00098

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	Circular Metric Connectors 5P M12 SOCKET R/A FIELD ATTACH CONN PLUG ANGLED 5POS SKT Connector: M12; plug; female; PIN:5; screw terminal; for cable
Category	连接器解决方案圆形连接器工业圆形连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

产品类别	Circular Metric Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS

RoHS Compliant

电气参数

额定电压

60V

最大额定电流

机械参数

重量	0.03 kg	包装方式	Bulk
方向	Keyed	外壳样式	Receptacle
端接方式	Screw	安装类型	Free Hanging (In-Line), Right Angle
连接器类型	Plug, Female Sockets	接触镀层	Gold
紧固类型	Threaded	安装样式	Cable
锁定特性	threaded joint, internal thread	包装数量	1
连接器 - 电缆	plug	端接样式	Screw
第一触头极性	Socket (Female)	触点数	5
位数	5	外壳尺寸-插件	M12-5
外壳材料及表面处理	Polyamide

产品信息

SPG	1	系列	M12
极性	A code - DeviceNet / CANopen	产品子类型	Connectors
单元数量	1	输出配置	Free Hanging (In-Line), Right Angle

环境参数

密封等级	IP 67	防护等级	IP67 - Dust Tight, Waterproof
工作温度	-30°C ~ 85°C

Documents & Media

PDF Document

43-0009(6,8) Drawing

PDF Document

43K1A835_e_3.pdf

相关型号

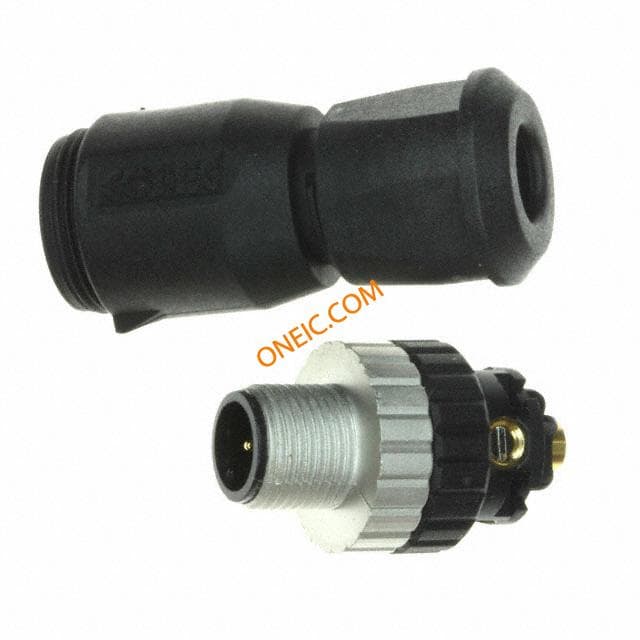

43-00102

CONEC

Circular Metric Connectors 5P M12 PLUG AXIAL FIELD ATTACH CONN PLUG MALE M12 5POS 8MM

¥36.3120

详情

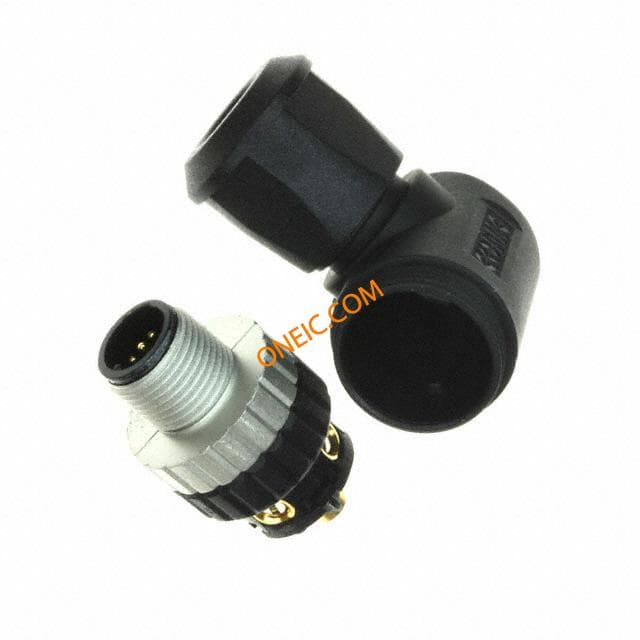

43-00106

CONEC

Circular Metric Connectors 5P M12 PLUG R/A FIELD ATTACH CONN PLUG MALE M12 5POS R/A 8MM

¥48.2528

详情

43-01036

CONEC

Conn M12 Circular PIN 5 POS Solder ST Thru-Hole 5 Terminal 1 Port ML SCKT M12X1 DIP SLDR BCK MNTNG Circular Metric Connectors SAL-12-FSH5-P5,5 M SCKT M12X1

¥43.7920

详情

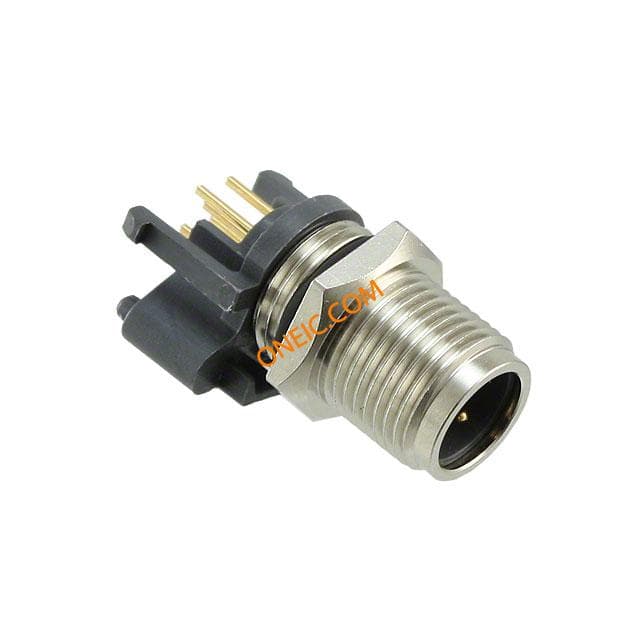

43-01168

Conec

CONN M12 5POS MALE PCB CONN RCPT PNL MNT 5POS PIN PCB Circular Metric Connectors 5P PCB SOLDER 10MM M12 FRONT MNT PLUG

¥23.5144

详情

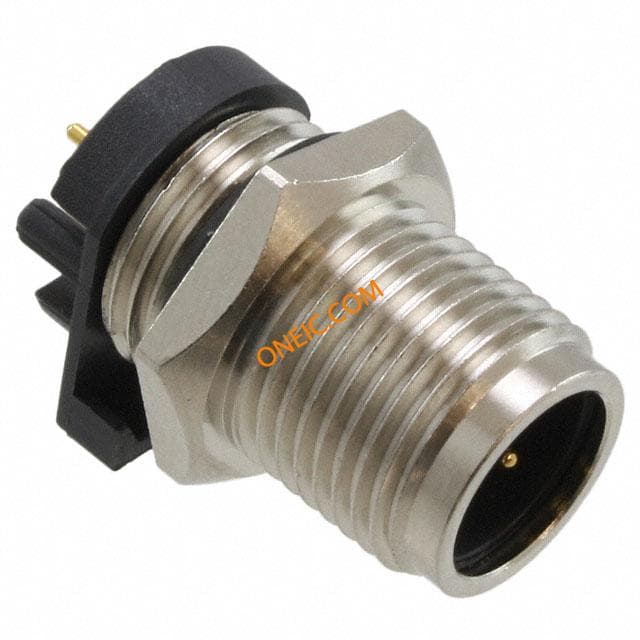

43-01184

Conec

CONN M12 5POS MALE PCB CONN RCPT PNL MNT 5POS PIN PCB Circular Metric Connectors 5P PCB SOLDER 5.5MM M12 FRONT MNT PLUG

¥27.4924

详情

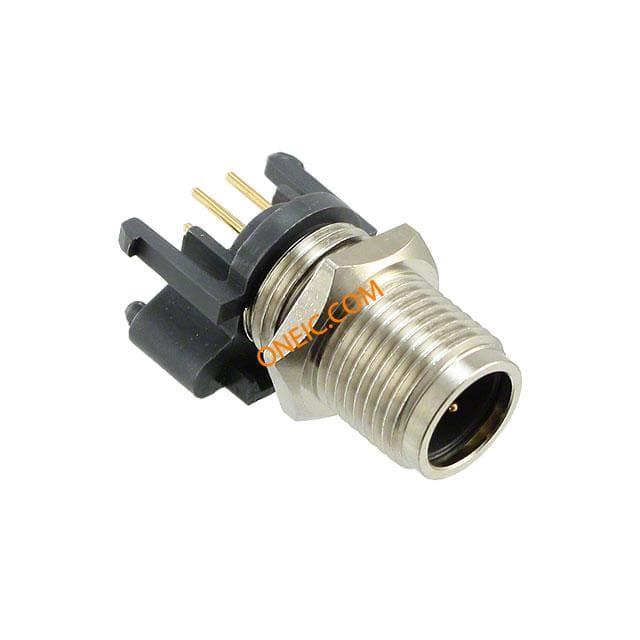

43-01169

Conec

CONN M12 5POS MALE PCB W/GND CONN RCPT PNL MNT 5POS PIN PCB Circular Metric Connectors 5P PCB SOLDER 10MM M12 FRONT MNT PLUG

¥37.6788

详情

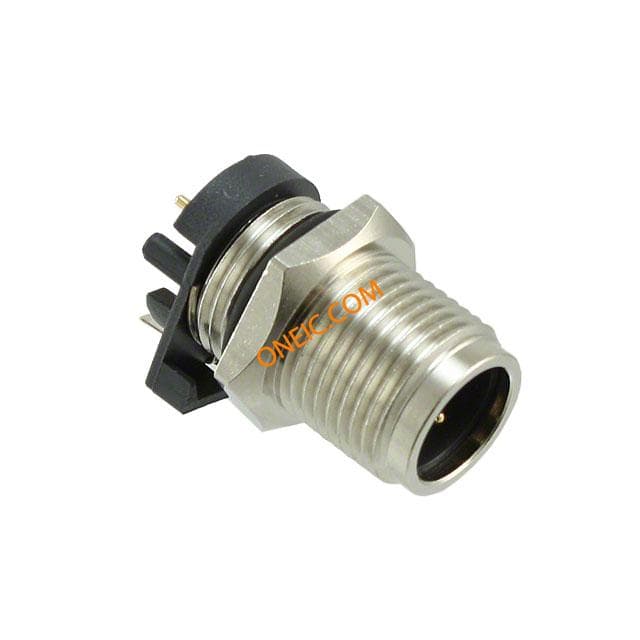

43-01185

Conec

CONN M12 5POS MALE PCB W/GND CONN RCPT PNL MNT 5POS PIN PCB Circular Metric Connectors 5P PCB SOLDER 5.5MM M12 FRONT MNT PLUG

¥28.5532

详情

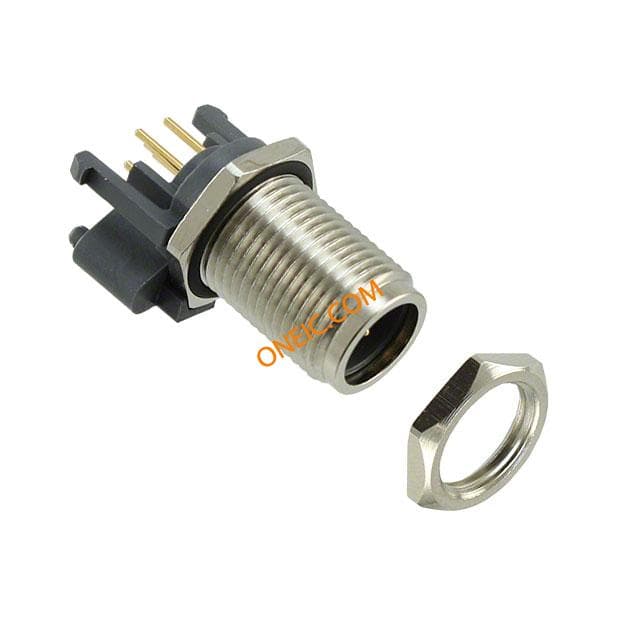

43-01177

Conec

CONN M12 5POS MALE PCB W/GND CONN RCPT PNL MNT 5POS PIN PCB Circular Metric Connectors 5P PCB SOLDER 10MM M12 BACK MNT PLUG

¥31.6880

详情

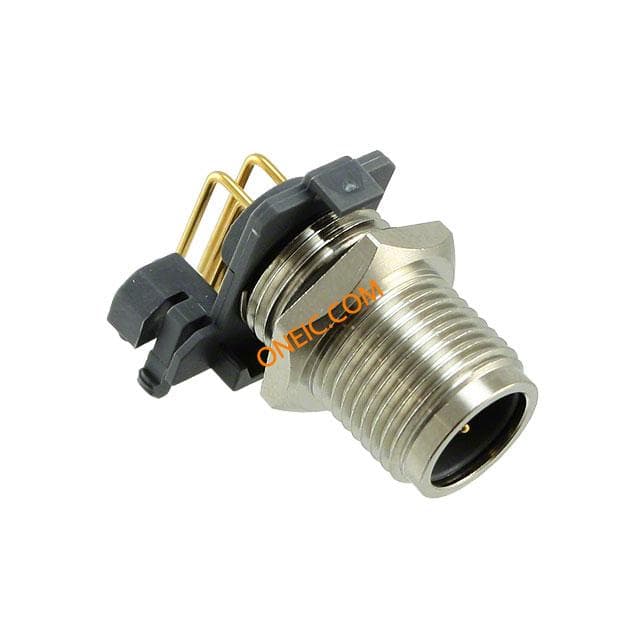

43-01211

Conec

CONN M12 5POS R/A MALE PCB W/GND CONN RCPT PNL MT 5POS PIN PCB RA Circular Metric Connectors 5P R/A PCB W/GND M12 FRONT MNT PLUG

¥37.2640

详情

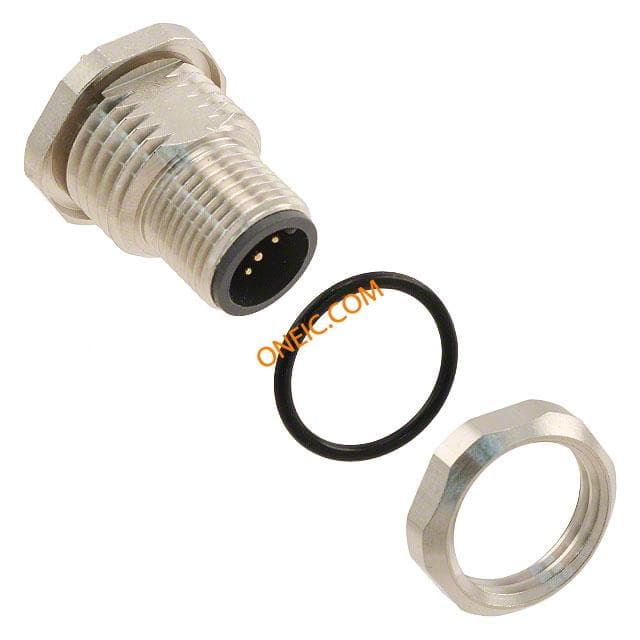

43-01033

Conec

CONN M12 5POS MALE PCB CONN RCPT PNL MNT 5POS PIN PCB Circular Metric Connectors 4P PCB SOLDER M12 BACK MNT PLUG

¥47.7972

详情

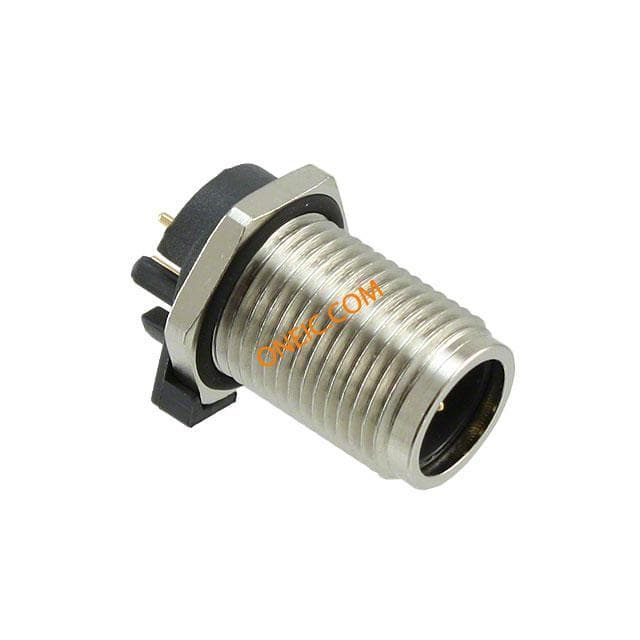

43-01193

Conec

CONN M12 5POS MALE PCB W/GND CONN RCPT PNL MNT 5POS PIN PCB Circular Metric Connectors 5P PCB SOLDER 5.5MM M12 BACK MNT PLUG

¥32.2320

详情

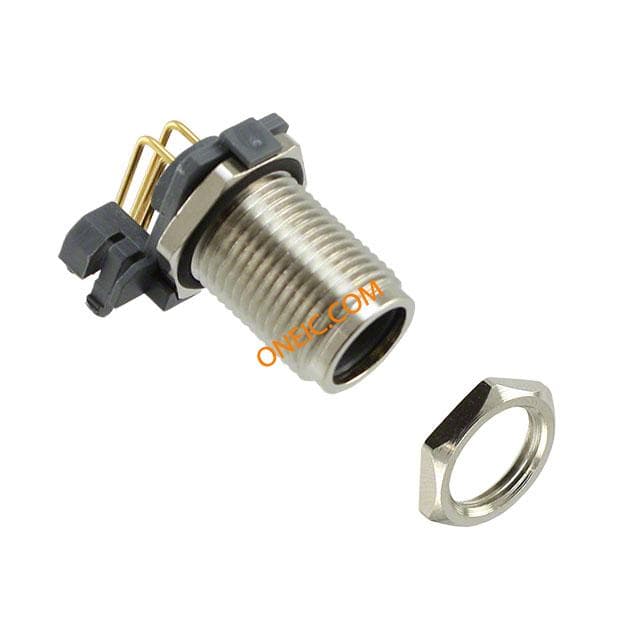

43-01207
