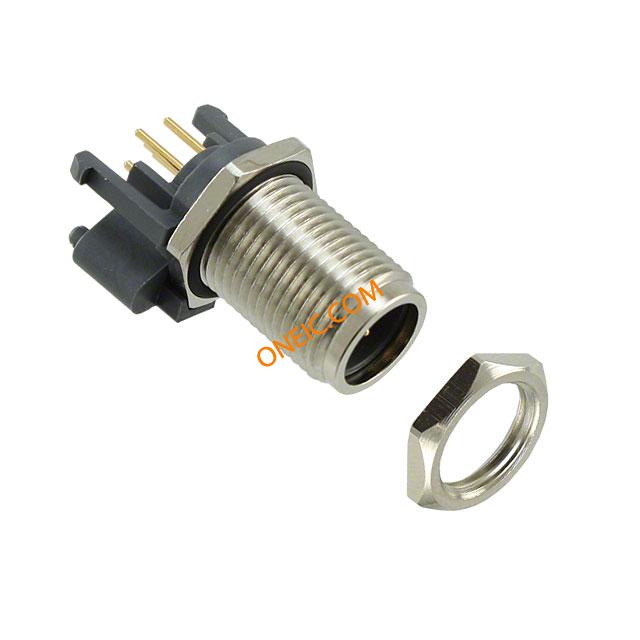

43-01177
| Manufacturer | |
| Description | CONN M12 5POS MALE PCB W/GND CONN RCPT PNL MNT 5POS PIN PCB Circular Metric Connectors 5P PCB SOLDER 10MM M12 BACK MNT PLUG |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Circular Metric Connectors | 标准包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 60V | 最大额定电流 | 4A |
机械参数
| 包装方式 | Bulk | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Solder |
| 安装类型 | Panel Mount, Bulkhead; Through Hole | 电缆直径 | 5 mm |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Gold |
| 紧固类型 | Threaded | 壳体材料 | Copper |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 触点数 | 5 | 位数 | 5 |
| 外壳尺寸-插件 | M12-5 | 外壳材料及表面处理 | Brass, Nickel Plated |
产品信息
| 类型 | Circular Connector | 产品特性 | Board Guide, Board Lock |
| 产品子类型 | Connectors | ||
环境参数
| 密封等级 | IP 67 | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -30°C ~ 85°C | ||
