点击放大查看

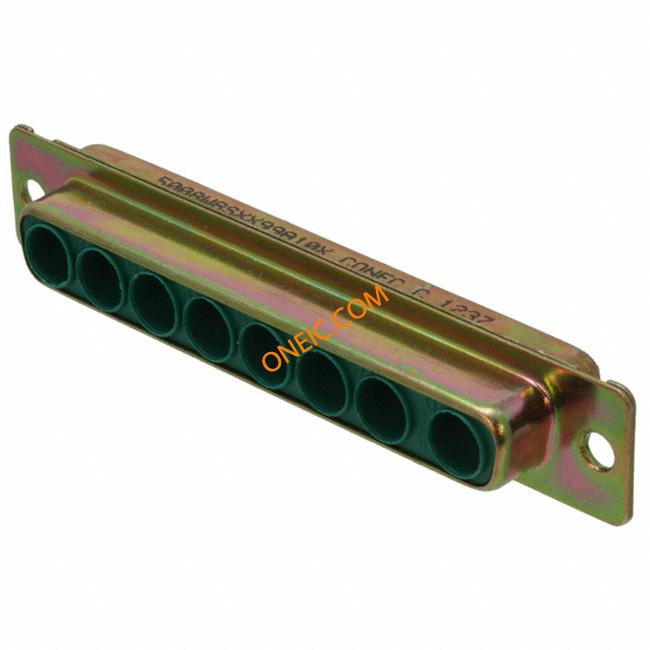

5008W8SXX99A10X
| Manufacturer | |
| Description | D-Sub Mixed Contact Connectors 8W8S FEMALE CONN D-SUB HOUSING 8W8 RCPT |
| Category |
商业参数
| 其他名称 | 626-1556 | 产品类别 | D-Sub Mixed Contact Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 10 |
合规参数
| RoHS | No | ||
机械参数
| 颜色 | Green | 包装方式 | Bulk |
| 外壳尺寸 | 4 | 触头类型 | Coax or Power |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Yellow Chromated |
| 连接器类型 | Receptacle for Female Contacts | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Panel | 排数 | 2 |
| 连接器样式 | D-Sub, Combo | 端接样式 | Crimp |
| 触点数 | 8 | 介电材料 | Polybutylene Terephthalate (PBT), Glass Filled |
| 位数 | 8 (Coax or Power) | 外壳镀层厚度 | 320µin (8.13µm) |
| 外壳材料及表面处理 | Steel, Yellow Chromate Plated | 外壳尺寸，连接器布局 | 4 (DC, C) - 8W8 |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
Documents & Media
相关型号
132C10039X
CONEC
D-Sub Contacts HIGH POWER CONTACT 30A SOLDER CUP FM Contact SKT Solder Cup ST Cable Mount CONN SOCKET COMBO-D 10-12AWG SLD
132C11019X
CONEC
D-Sub Contacts HIGH POWER CONTACT 10A CRIMP FEMALE Contact SKT Crimp ST Cable Mount CONN SKT COMBO-D 16-20AWG CRIMP
132C11029X
CONEC
D-Sub Contacts HIGH POWER CONTACT 20A CRIMP FEMALE Contact SKT Crimp ST Cable Mount CONN SKT COMBO-D 12-14AWG CRIMP
132J14019X
CONEC
D-Sub Contacts HIGH POWER CONTACT CONN SOCKET 20 AWG GOLD
132J30019X
CONEC
D-Sub Contacts COAX CONTACT FEMALE FOR 179 187 Contact SKT Solder ST Thru-Hole CONN SOCKET COMBO-D COAX 75 OHM
132C10019X
CONEC
D-Sub Contacts HIGH POWER CONTACT 10A SOLDER CUP FM Contact SKT Solder Cup ST Cable Mount CONN SOCKET COMBO-D 16-20AWG SLD
132A11029X
CONEC
D-Sub Contacts 20A SOCKET CONTACT MACHINED 12-14 AWG FEMALE POWER CRIMP CONTACT 20A
132J20049X
CONEC
D-Sub Contacts COAX CONTACT FEMALE FOR 58 CONN SOCKET COMBO-D COAX 50 OHM
132J20019X
CONEC
D-Sub Contacts COAX CONTACT FEMALE FOR 178 196 404 CONN SOCKET COMBO-D COAX 50 OHM
132J20059X
CONEC
D-Sub Contacts 316 U double braid 50 ohm Socket FEMALE COAX CONTACT

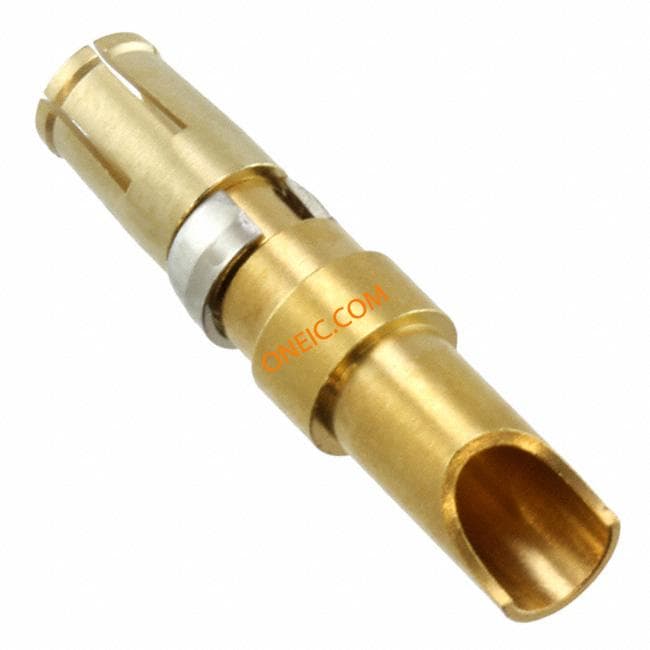

132A10039X
