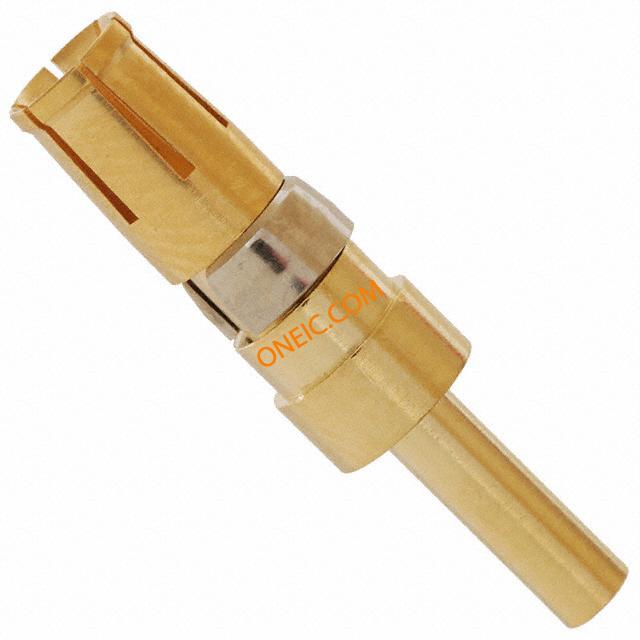

132C11019X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Contacts HIGH POWER CONTACT 10A CRIMP FEMALE Contact SKT Crimp ST Cable Mount CONN SKT COMBO-D 16-20AWG CRIMP
Category	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1152	产品类别	D-Sub Contacts
标准包装数量	100

合规参数

RoHS	RoHS Compliant	欧盟RoHS	Compliant
抗辐射加固	No

电气参数

最大额定电流

10 A

连接器类型 - 电压输入

Crimp

机械参数

深度	5.5	间距	Not Required mm
高度	5.5	包装方式	Bulk
导线线规	20-16	屏蔽类型	No
端接方式	Crimp	触点形式	Machined
触头类型	Machined Contacts	触点形状	Machined
安装类型	Cable Mount	连接器类型	Connector D-Subminiature
接触镀层	Gold	触头材料	Copper Alloy
壳体材料	Not Required	总长度	22.98 mm
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	Not Required	端接表面处理	Gold
接触件端接	Crimp	接触镀层厚度	30µin (0.76µm)
端接镀层厚度	8µin (0.20µm)

产品信息

类型	Power	连接器性别	SKT
系列	132C	端口数	1 Port

Documents & Media

PDF Document

13K1IE7A.pdf

PDF Document

132C11019X Drawing
