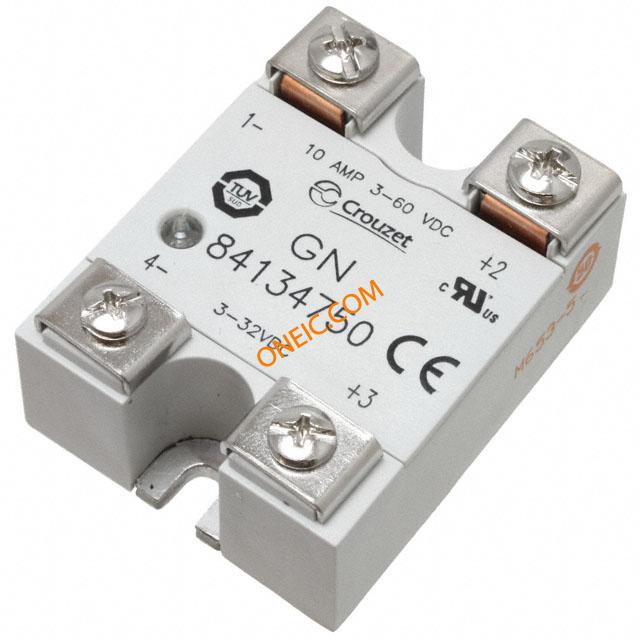

84134750
| Manufacturer | |
| Description | Solid State Relays - Industrial Mount 10A/60Vdc DC In Xstr SSR IP00 DC 10A/60VDC DC INPUT Relay SSR 14.5mA 32V DC-IN 10A 60V DC-OUT SSR, PANEL MOUNT, 60VDC, 32VDC, 10A Relay; SSR; Control; Cur-Rtg 10A; Ctrl-V 3-32DC; Vol-Rtg 3-60DC; UL, CE; GF Series Solid State Relay Control Voltage: 3-32VDC Load Current: 10 Amps Load Voltage: 1-100VDC Output Configuration: 1A SPNO Mounting: Base Mount |
| Category |
商业参数
| 零件号别名 | GN84134750 | 产品类别 | Solid State Relays - Industrial Mount |
| 标准包装数量 | 20 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 标准 | UL, CE |
| 海关税号 | 85364110 | ||
电气参数
| 电路 | SPST-NO (1 Form A) | 输出类型 | DC |
| 负载电流 | 10A | 开关模式 | :- |
| 负载电压 | 3 ~ 60 V | 额定电压 | 60 VDC |
| 供电电压 | 3 VDC to 32 VDC | 最大额定电流 | 10 A |
| 最小输入电压 | 3 ~ 32VDC | 电源电压（最大） | :32VDC |
| 最小供电电压 | 3 VDC to 60 VDC | 供电电压 (Vcc/Vdd) | 32 VDC |
| 额定交流电压（相间） | :60VDC | ||
机械参数
| 重量 | 0.1 | 包装方式 | Bulk |
| 端接方式 | Screw | 触点形式 | SPST-NO |
| 安装类型 | Chassis Mount or Panel Mount | 引脚数 | 4 |
| 封装形式 | Hockey Puck | 端接样式 | Screw Terminal |
| 典型触点布局 | :- | ||
产品信息
| 功能 | DC Switching | 继电器类型 | Relay |
| 制造商全称 | GF Series | 产品子类型 | Industrial Mount |
| 控制/显示类型 | :DC | ||
