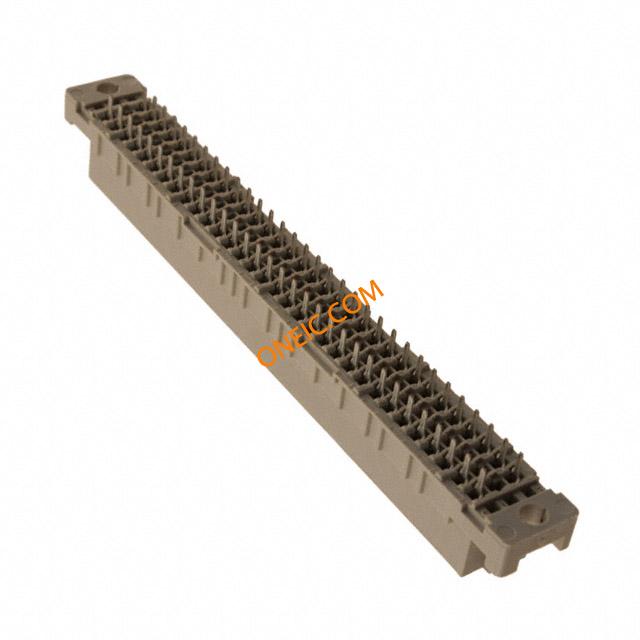

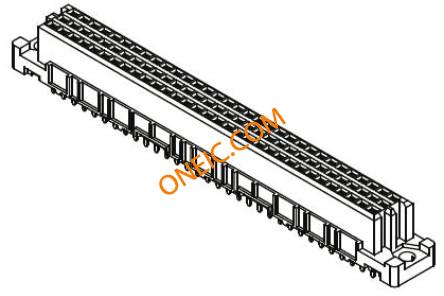

09032646824
| Manufacturer | |
| Description | Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 64P 2A FEMALE STRT DIN-SIGNAL C064FS-2,9C1-2 Connector DIN-Signal solder 64-way f Connector; Backplane; 2 A; Female; 64; Straight Solder Pin; 94.9 mm Connector;Backplane;2A;Female;64;StraightSolderPin;94.9mm Plug; DIN 41612,type C; female; PIN:64; a+c; THT; straight; 2A Harting 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插座, 焊接端接 |
| Category |
商业参数
| 零件号别名 | 03 09 09-03-264-6824 264 6824 | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | IEC60603-2 | 材料阻燃等级 | UL94 V-0 |
电气参数
| 最大额定电流 | 2A | ||
机械参数
| 深度 | 10.5 | 间距 | 0.100" (2.54mm) |
| 高度 | 11.6 | 长度 | 94.9mm |
| 重量 | 0.01 kg | 包装方式 | Bulk |
| 外壳尺寸 | C | 方向 | straight |
| 端接方式 | Solder | 引脚间距 | len. 2.9mm |
| 引脚长度（针脚） | 2.9mm | 尾部长度 | 2.9 mm |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold Over Nickel |
| 排数 | 3 | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 94.9mm |
| 包装数量 | 30 | 主要材料 | Industrial |
| 端接排数 | 焊接 | 连接器 - 电缆 | plug |
| 插针孔直径 | 2.54mm | 端接样式 | Solder Pin |
| 触点数 | 64 | 位数 | 96 |
| 绝缘材料 - 材质 | Thermoplastic, Glass Filled | 安装孔直径 | 2.8mm |
| 触点材料 - 镀层 | gold plated | 第一连接器安装特征 | a+c |
产品信息
| SPG | 30 | 类型 | DIN 41612 |
| 样式 | C | 连接器性别 | F |
| 产品特性 | Backplane | 单元数量 | 1 |
| 插座类型与数量 | A/c | 加载位置数 | 64 |
环境参数
| 额定等级 | C2 | 级别、等级 | 2 |
| 机械寿命 | 400cycles | 工作温度 | -55...125°C |
