09033646921

Manufacturer
HARTING Technology Group
Description

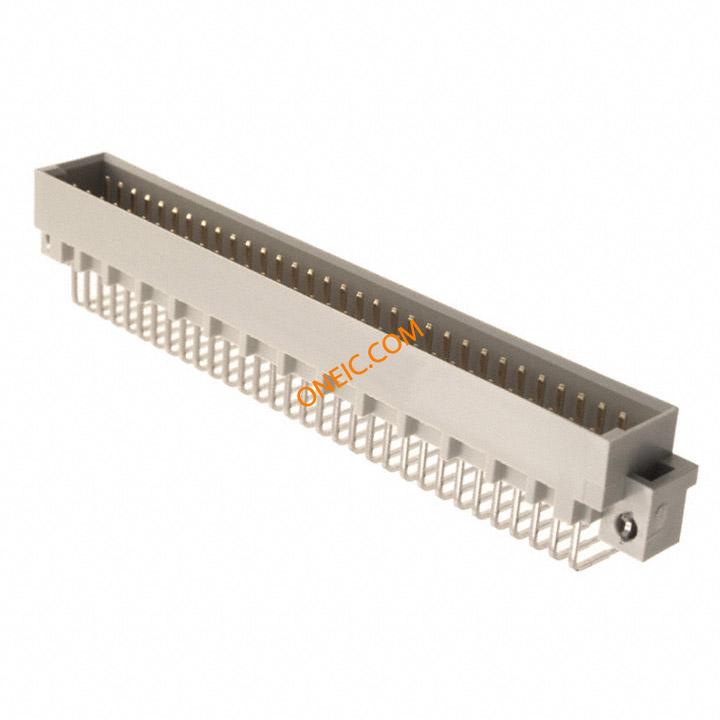

DIN-SIGNAL C064MS-3,0C1-2-CLIP DIN 41612 Connectors 64P MALE RA TYPE C Connector DIN-Signal solder 64-way m ConnectorDIN-Signalsolder64-waym Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c, 直角 DIN 41612 插头, 焊接端接
Category
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

零件号别名03 09 09-03-364-6921 364 6921产品类别DIN 41612 Connectors
标准包装数量1工厂包装数量20

合规参数

RoHSCompliant材料阻燃等级UL94 V-0

电气参数

接触电阻20mΩ最大额定电流2A

机械参数

间距0.100" (2.54mm)包装方式Bulk
方向直角端接方式Solder
尾部长度3 mm安装类型Through Hole, Right Angle
连接器类型Header, Male Pins接触镀层Gold over Nickel
排数3触头材料Copper Alloy
壳体材料Thermoplastic端接排数a/c
端接样式Solder Pin触点数64
位数96绝缘材料 - 材质Thermoplastic, Glass Filled

产品信息

类型C样式C
连接器性别Male系列09 03
产品特性Mounting Clips等级代码C2
CAD图纸3D CAD Model产品子类型Plugs
插座类型与数量A/c加载位置数64

环境参数

额定等级C2级别、等级2
工作温度+125°C
