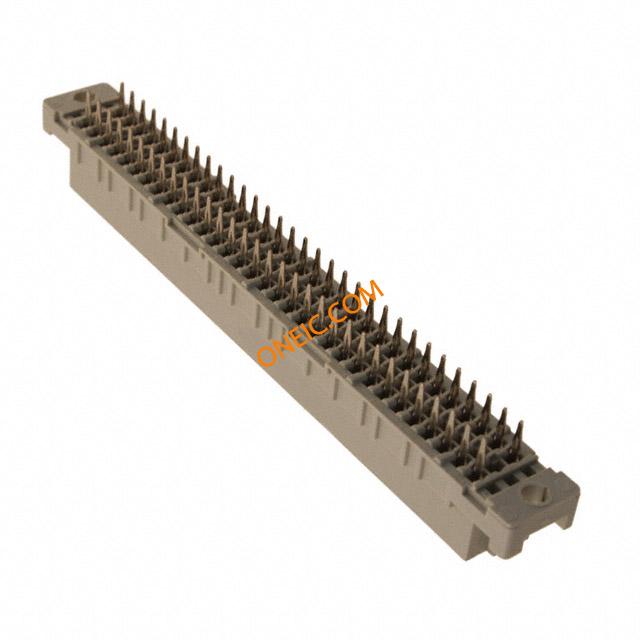

09032646850

Manufacturer	HARTING Technology Group
Description	Conn DIN 41612 F 64 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors 64P 2A FEMALE STRT DIN-SIGNAL C064FP-4,5C1-2 PCB DIN connector Type C 64-pin F PCBCONNECTOR64-PINF Harting 64 路 2.54mm 节距, C型 C2等级, 2 行 a/c 直向 DIN 41612 插座, 按式端接
Category	连接器解决方案背板连接器DIN 41612

对参数有疑问？问 AI 助手

商业参数

零件号别名	03 09 09-03-264-6850 264 6850	产品类别	DIN 41612 Connectors
标准包装数量	1	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 V-0

电气参数

接触电阻

15mΩ

最大额定电流

机械参数

深度	10.5	间距	0.100" (2.54mm)
高度	11.6	包装方式	Bulk
方向	直	端接方式	Press Fit
重量（g）	12.80000	尾部长度	4.5 mm
安装类型	Through Hole	连接器类型	Receptacle, Female Sockets
接触镀层	Gold Over Nickel	排数	2
触头材料	Copper Alloy	壳体材料	Thermoplastic
总长度	94.9	端接排数	按式
端接样式	Press Fit	触点数	64
位数	96	绝缘材料 - 材质	Thermoplastic, Glass Filled

产品信息

类型	DIN 41612	样式	C
连接器性别	F	CAD图纸	3D CAD Model
插座类型与数量	A/c	加载位置数	64

环境参数

额定等级	C2	级别、等级	2
工作温度	+105°C
