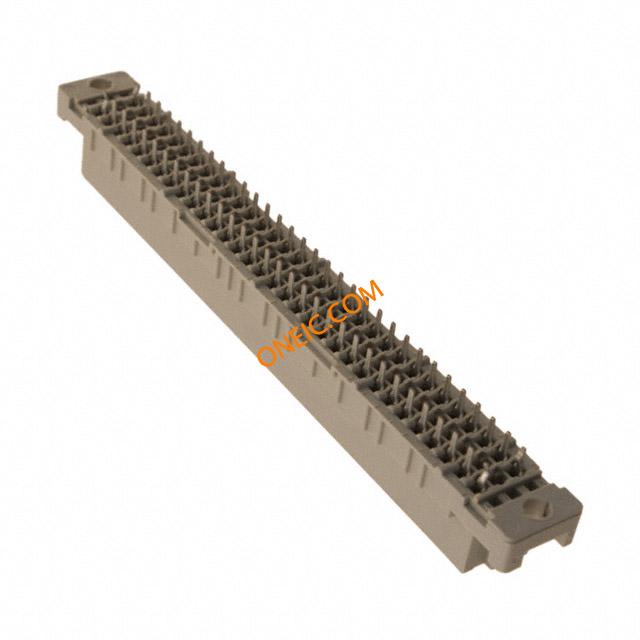

09032646855
| Manufacturer | |
| Description | Conn Backplane F 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors DIN-SIGNAL C064FS-2,9C1-2-KP DIN-SIGNAL C064FS-2,9C1-2-KP Connector DIN-Signal solder 64-way f ConnectorDIN-Signalsolder64-wayf Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插座, 焊接端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-264-6855 264 6855 | Standard Package | 1 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Contact Resistance | 20mΩ | Current Rating (Max) | 2A |
Mechanical
| Depth | 10.5 | Pitch | 0.100" (2.54mm) |
| Height | 11.6 | Packaging | Bulk |
| Orientation | 直 | Termination | Solder |
| Mounting Type | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Nickel | Number of Rows | 3 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 94.9 | Termination Rows | a/c |
| Termination Style | Solder | Number of Contacts | 64 |
| Number of Positions | 96 | Material - Insulation | Thermoplastic, Glass Filled |
Product Info
| Type | Backplane | Style | C |
| Gender | F | Series | 09 03 |
| Class Code | C2 | CAD Drawing | 3D CAD Model |
| Product Type | Receptacles | Outlet Types and Quantity | A/c |
| Number of Positions Loaded | 64 | ||
Environmental
| Ratings | C2 | Level, Class | 2 |
| Operating Temperature | +125°C | ||
