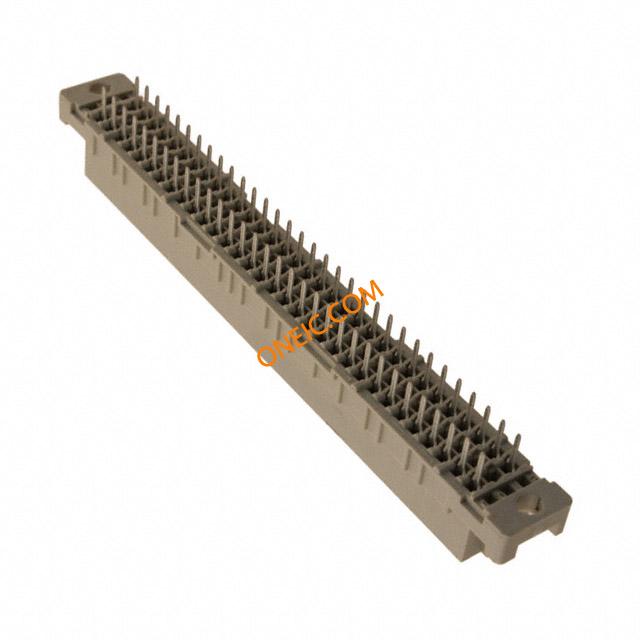

09032647825
| Manufacturer | |
| Description | Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 64P FEMALE TYPE C STRT WRAP POSTS DIN-SIGNAL C064FS-4,5C1-3 64 way 3 row DIN41612 socket,4mm Harting 64 路 2.54mm 节距, C型 C3等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接 |
| Category |
商业参数
| 零件号别名 | 03 09 09-03-264-7825 264 7825 | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 最大额定电流 | 2A | ||
机械参数
| 深度 | 10.5 | 间距 | 0.100" (2.54mm) |
| 高度 | 11.6 | 包装方式 | Bulk |
| 方向 | 直 | 端接方式 | Solder |
| 重量（g） | 12.80000 | 安装类型 | Straight |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 总长度 | 94.9 |
| 端接排数 | 焊接 | 端接样式 | Solder |
| 触点数 | 64 | 位数 | 96 |
| 绝缘材料 - 材质 | Thermoplastic, Glass Filled | ||
产品信息
| 类型 | DIN 41612 | 样式 | C |
| 连接器性别 | F | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles | 插座类型与数量 | A/b/c |
| 加载位置数 | 64 | ||
环境参数
| 额定等级 | C3 | 级别、等级 | 3 |
相关型号

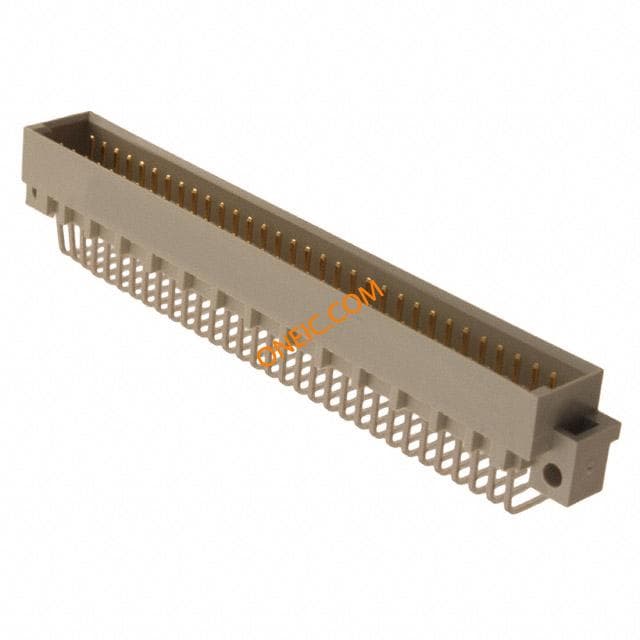

09031646921
Harting Technology Group
Conn Shrouded Header M 64 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 64P 2A MALE R/A SLDR DIN-SIGNAL C064MS-3,0C1-2 64 way 3 row DIN41612 plug,r/a terminals BackPlaneConnector;64;2A(Max.);2.54mm(Row);Male;AngledSolderPin Socket; DIN 41612,type C; male; PIN:64; a+c; THT; angled 90°; 2A Harting 64 路 2.54mm 节距, C型 C2等级, 2 行 a/c, 直角 DIN 41612 插头, 焊接端接
09031647921
Harting Technology Group
Conn Shrouded Header M 64 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 64P MALE RA TYPE C 2.54MM STANDARD DIN-SIGNAL C064MS-3,0C1-3 64 way 3 row DIN41612 plug,r/a terminals Harting 64 路 2.54mm 节距, C型 C3等级, 2 行 a/c, 直角 DIN 41612 插头, 焊接端接
09036646921
Harting Technology Group
Conn Shrouded Header HDR 32 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 64P MALE RA TYPE C DIN-SIGNAL C064MS-3,0C1-2-COD

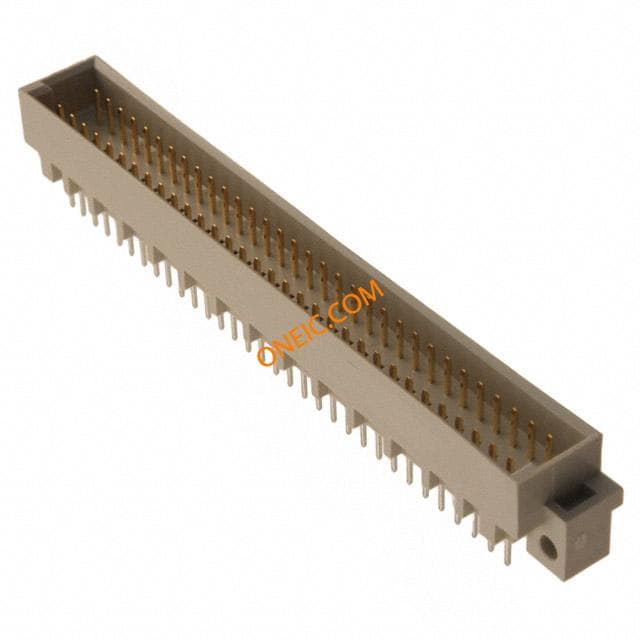

09031646922
Harting Technology Group
Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 64P MALE STRT TYPE C 2.54MM STANDARD DIN-SIGNAL C064MS-3,0C1-2 Connector DIN-Signal solder 64-way m ConnectorDIN-Signalsolder64-waym Socket; DIN 41612,type C; male; PIN:64; a+c; THT; straight; 2A Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插头, 焊接端接

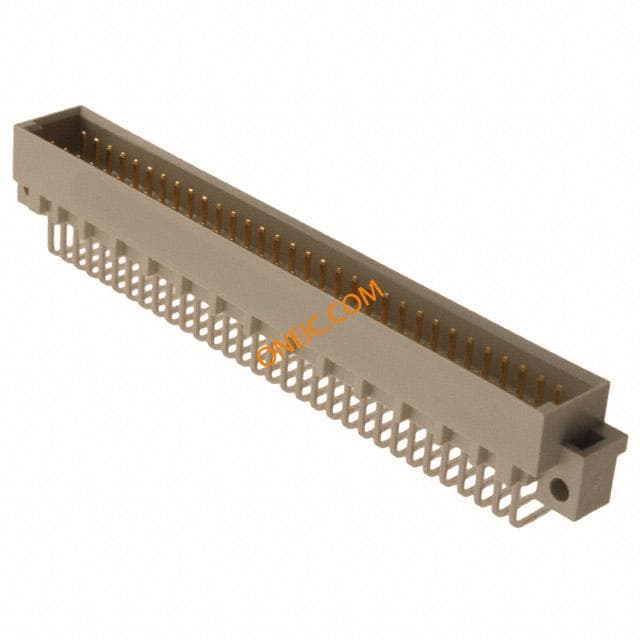

09031642921
Harting Technology Group
Conn Shrouded Header M 64 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 64P 2A MALE RIGHT ANGLE DIN-SIGNAL C064MS-3,0C1-1 64 way 3 row DIN41612 plug,r/a terminals DIN;BackplaneConnector Harting 64 路 2.54mm 节距, C型 C1等级, 2 行 a/c, 直角 DIN 41612 插头, 焊接端接
09033646921
Harting
DIN-SIGNAL C064MS-3,0C1-2-CLIP DIN 41612 Connectors 64P MALE RA TYPE C Connector DIN-Signal solder 64-way m ConnectorDIN-Signalsolder64-waym Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c, 直角 DIN 41612 插头, 焊接端接

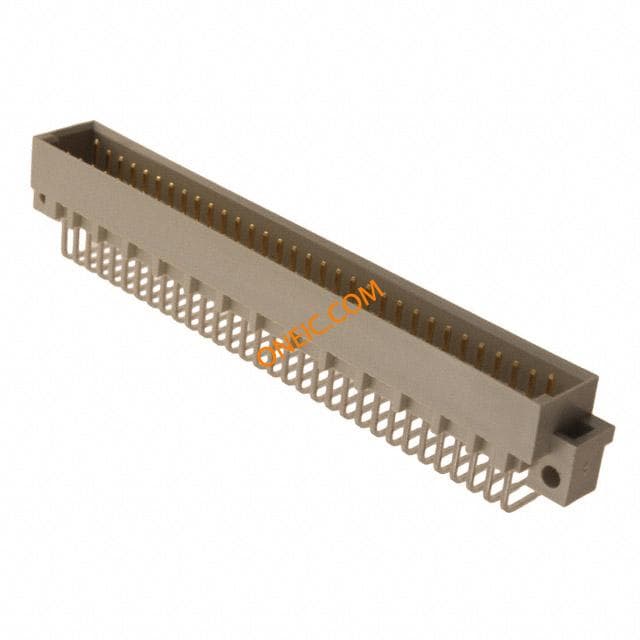

09031646951
