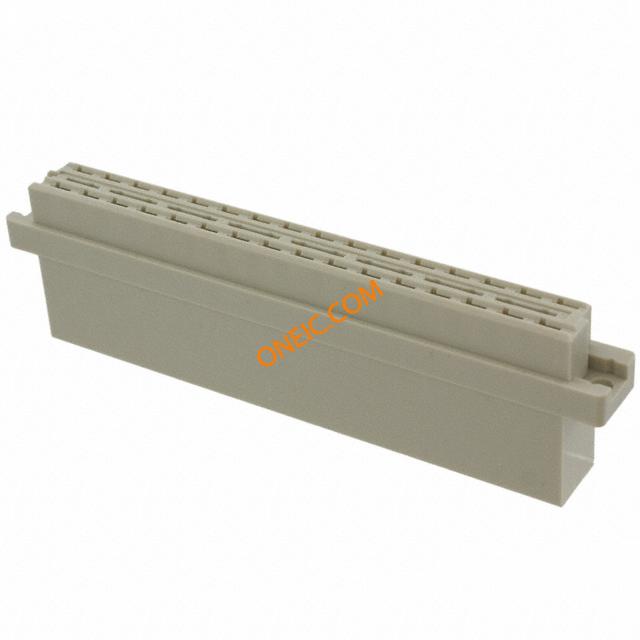

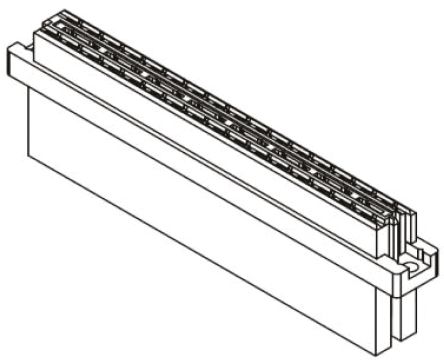

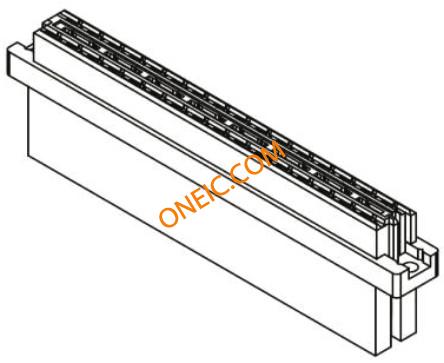

09040323213

Manufacturer	HARTING Technology Group
Description	Conn DIN 41612 F 32 POS 5.08mm Crimp ST Panel Mount DIN 41612 Connectors DIN D 32 F HOUSING DIN-POWER D032-FC-B Connector DIN-Power crimp 32-way f ConnectorDIN-Powercrimp32-wayf Plug; DIN 41612,type D; female; PIN:32; a+c; crimped; straight Harting 09 04 系列 32 路 5.08mm 节距, D型, 2 行 a/b 直向 DIN 41612 插座, 压接端接
Category	连接器解决方案背板连接器DIN 41612

对参数有疑问？问 AI 助手

商业参数

零件号别名	032 04 09 09-04-032-3213 3213	产品类别	DIN 41612 Connectors
标准包装数量	1	工厂包装数量	120

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

额定电压	125 V ac	接触电阻	20mΩ
最大额定电流	6A

机械参数

深度	26.3	间距	0.200" (5.08mm)
高度	9.95	重量	0.02 kg
包装方式	Bulk	方向	straight
端接方式	Crimp	重量（g）	15.60000
安装类型	Straight	连接器类型	Housing for Female Sockets
接触镀层	Gold	排数	2
连接器样式	DIN 41612, Type D	连接器用途	Receptacle
触头材料	Copper Alloy	壳体材料	Thermoplastic
总长度	94.78	包装数量	3
端接排数	a/b	连接器 - 电缆	plug
触点数	32	位数	32 (Power)
第一连接器安装特征	a+c

产品信息

SPG	3	备注	Contacts Not Provided
类型	DIN 41612	连接器性别	F
系列	09 04	单元数量	1
插座类型与数量	A/b

环境参数

工作温度

+125°C

Documents & Media

PDF Document

DIN 41612 Type D
