点击放大查看

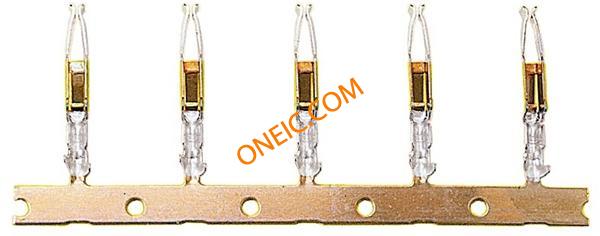

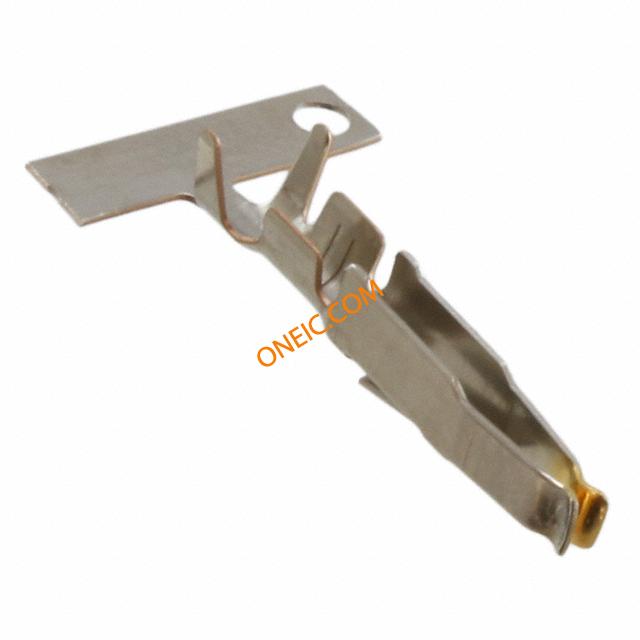

09060007482
| Manufacturer | |
| Description | Contact SKT Crimp ST Cable Mount Reel DIN 41612 Connectors DIN-POWER CRIMP 3 FEM PL2 DIN-POWER CRIMP 3,F, PL2 DIN-Power crimp contact female DIN-Powercrimpcontactfemale Harting 09 06 系列 母 铜合金触点, 直 DIN 连接器触点 |
| Category |
商业参数
| 其他名称 | 1195-1012-1 | 零件号别名 | 000 06 09 09-06-000-7482 7482 |
| 标准包装数量 | 250 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20mΩ | 最大额定电流 | 6 A |
机械参数
| 间距 | 5.08 mm | 包装方式 | Reel |
| 导线线规 | 16-20 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Power |
| 安装类型 | Cable Mount | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Recepta... | 触头材料 | Copper Alloy |
| 总长度 | 20 | 端接样式 | Crimp |
| 第一触头极性 | Female | 接触件端接 | Crimp |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | 09 06 | 方向 | 直 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Contacts |
| 适用产品/相关产品 | DIN41612 Type D Female Connector, DIN41612 Type E Female Connector, DIN41612 Type F Female Connector | ||
环境参数
| 工作温度 | +125°C | ||
