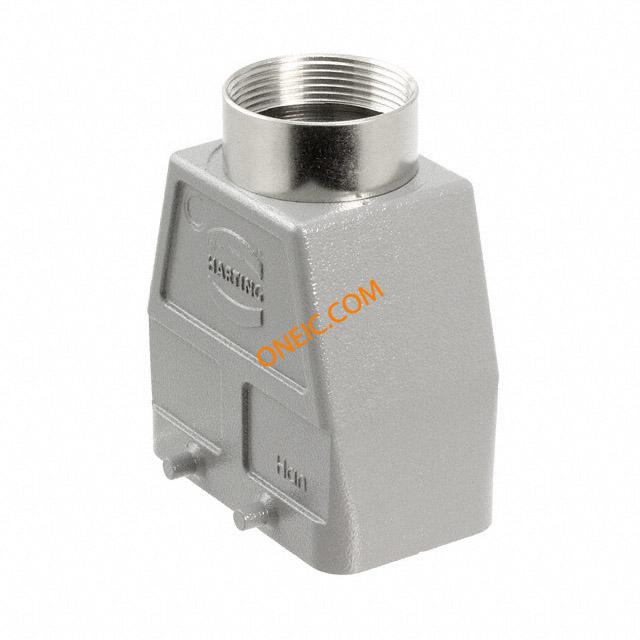

09300100423

Manufacturer	HARTING Technology Group
Description	Connector Accessories Hood Metal Heavy Duty Power Connectors HAN 10B PG29 TOP METAL HOOD CONN HAN 10B HOOD TOP PG29 High type top entry hood,0930010042301 HANBHOODTOPENTRYHC4PEGSPG29 Han B Standard Hood Top Entry HC 4 Pegs size 10 B Harting Han B 系列顶入电源连接器
Category	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3492	零件号别名	010 0423 09 09-30-010-0423 30
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	10

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

机械参数

尺寸	10B	深度	57
高度	88.5	包装方式	Bulk
方向	顶入	螺纹尺寸	PG29
重量（g）	185.00000	外壳颜色	Gray
连接器类型	Hood	外壳涂层	Powder Coated
安装样式	Straight	插入力	Female
壳体材料	Aluminum, Die Cast	总长度	72.6
尺寸/外形	2.858" L x 1.693" W x 3.425" H (72.60mm x 43.00mm x 87.00mm)	端接样式	Cable
触点数	1

产品信息

类型	Hood	样式	Top Entry
系列	Han Hv Es	产品子类型	Hoods
锁定位置	Locking Clip on Base Bottom	附件类型	Hood

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
